UTWE 6/11+1

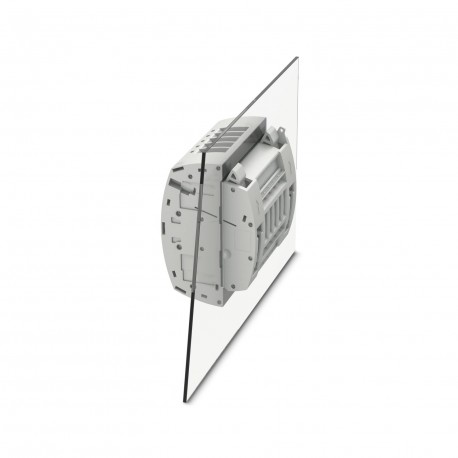

UTWE 6/11+1 1029713 PHOENIX CONTACT Test terminal strip
$0.00USD
3943 in stock
Key Specifications
Color:gray (RAL 7042)
Depth:81 mm
Pitch:8.2 mm
Width:131 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Depth | 81 mm |
| Pitch | 8.2 mm |
| Width | 131 mm |
| Height | 81 mm |
| Potentials | 12 |
| Product type | Test terminal strip |
| Screw thread | M4 |
| Mounting type | Wall mounting |
| Number of rows | 1 |
| Nominal current | 24 A |
| Nominal voltage | 400 V |
| Open side panel | No |
| Plate thickness | 1 mm ... 4 mm |
| Stripping length | 10 mm |
| Cross section AWG | 24 ... 8 (converted acc. to IEC) |
| Tightening torque | 1.5 ... 1.8 Nm |
| Test surge voltage | 5 kV |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 12 |
| Rated surge voltage | 4 kV |
| Maximum load current | 30 A (with 10 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 6 mm² |
| Number of connections | 24 |
| Terminal block mounting | 0.8 Nm ... 1 Nm |
| Insulating material group | I |
| Internal cylindrical gage | A5 |
| Conductor cross section rigid | 0.2 mm² ... 10 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Conductor cross section flexible | 0.2 mm² ... 10 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| 2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.31 W |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Product Description
Test pin strip, rated voltage: 400 V, rated current: 24 A, number of connections: 24, number of poles: 12, connection type: Screw connection, 1st floor, Sizing cross-section: 6 mm², cross-section: 0.2
