UTTB 4 BN

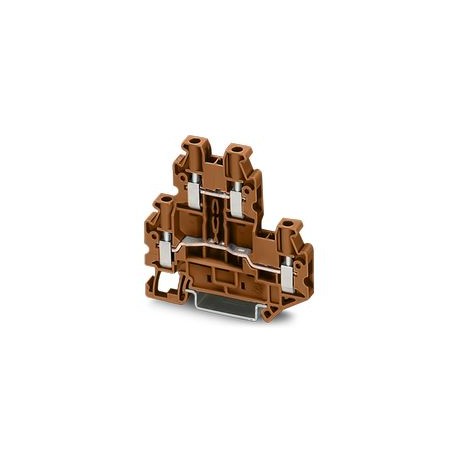

UTTB 4 BN 1484265 PHOENIX CONTACT Double-deck terminal block, nominal voltage: 800 V, nominal current: 30 A,..
$3.12USD
3236 in stock
Key Specifications
:Machine building
Color:brown
Width:6.2 mm
Height:69.9 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Machine building | |
| Color | brown |
| Width | 6.2 mm |
| Height | 69.9 mm |
| Potentials | 2 |
| Product type | Multi-level terminal block |
| Screw thread | M3 |
| Mounting type | NS 35/7,5 |
| Number of rows | 2 |
| End cover width | 2.2 mm |
| Nominal current | 30 A |
| Nominal voltage | 800 V |
| Open side panel | Yes |
| Stripping length | 9 mm |
| Cross section AWG | 26 ... 10 (converted acc. to IEC) |
| Tightening torque | 0.6 ... 0.8 Nm |
| Depth on NS 35/15 | 72.5 mm |
| Area of application | Railway industry |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 65 mm |
| Insulating material | PA |
| Rated surge voltage | 8 kV |
| Maximum load current | 36 A (with 6 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 4 mm² |
| Number of connections | 4 |
| Insulating material group | I |
| Internal cylindrical gage | A4 |
| Conductor cross section rigid | 0.14 mm² ... 6 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.14 mm² ... 6 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
| Static insulating material application in cold | -60 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Product Description
Double-level terminal block, nom. voltage: 800 V, nominal current: 30 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm2, cross section: 0.14 mm2 - 6 mm2, mounting t
