UTR2F/EP-0EUL

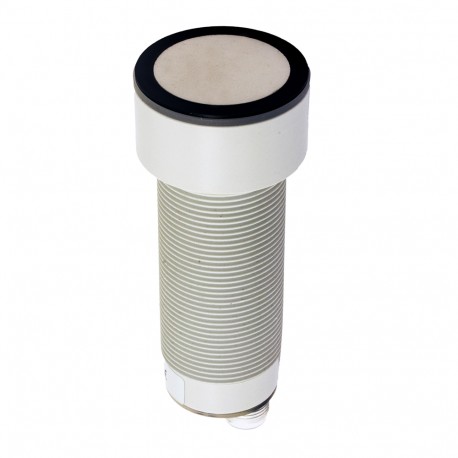

UTR2F/EP-0EUL MICRO DETECTORS Ultrasonic sensor M30 PNP NO/NC 350-6000 mm plug M12 with teach-in button, cUL..
$0.00USD
3988 in stock
Key Specifications
Weight:170g
Approvals:CEcULus
Beam angle:± 9°
Dimensions:ø 38,8mm / L = 99mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 170g |
| Approvals | CEcULus |
| Beam angle | ± 9° |
| Dimensions | ø 38,8mm / L = 99mm |
| Hysteresis | 1% |
| Resolution | 6mm |
| Connections | M12 plug |
| Output type | 1 x NPN |
| Load current | 100mA |
| Response time | 600ms |
| LED indicators | Green LED: echo active - Yellow LED: output active |
| Leakage current | 10μA @ 30Vcc |
| Linearity error | 1% |
| Output Function | NO |
| Repeat Accuracy | 0,5% |
| Housing Material | PBT |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 15 - 30Vdc |
| Tightening torque | 1,5Nm |
| Max ripple content | 5% |
| Output voltage drop | 2,2Vmax. @ IL=100 mA |
| Storage temperature | - 35°C…+ 70° C (without freeze) |
| Switching frequency | 1Hz |
| Thermal drift of Sr | ± 8% |
| Active Head Material | Epoxy-glass resin |
| Degree of protection | IP67 |
| Supplied Accessories | 2 x M30x1,5 nuts, 2 flexible washers Ø 30 |
| Transducer Frequency | 75KHz |
| thermal compensation | Yes |
| Operating temperature | - 20°C…+ 70°C |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 |
| No-Load supply current | ≤50mA |
| Sensitivity adjustment | Teach-in button |
| Nominal sensing distance | 6000mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 500ms(digital) |
| Impulsive Overvoltage Protection | Yes |
| Minimum sensing distance (blind zone) | 350mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
