UTN 6

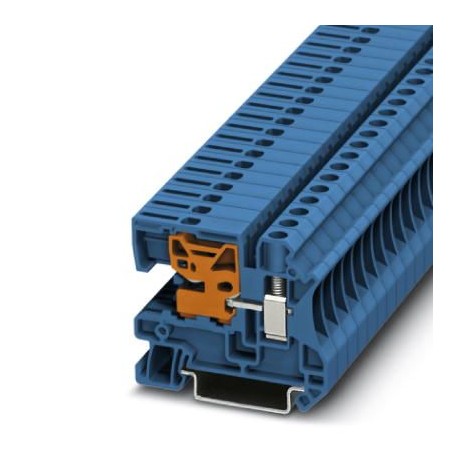

UTN 6 3245037 PHOENIX CONTACT N disconnect terminal block
$3.11USD
3264 in stock
Key Specifications
GTIN:4046356299022
Orderkey:3245037
Catalog page:Page 248 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356299022 |
| Orderkey | 3245037 |
| Catalog page | Page 248 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 8.2 mm |
| Length (General) | 55 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | 10 mm² / 2 kg |
| Minimum order quantity | 50 pc |
| End cover width (General) | 2.2 mm |
| Height NS 35/15 (General) | 55 mm |
| Screw thread (Dimensions) | M4 |
| Height NS 35/7,5 (General) | 47.5 mm |
| Note (Key Commercial Data) | Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 10 mm |
| Connection method (Dimensions) | Screw connection |
| Setpoint (Key Commercial Data) | 5 N |
| Potentials (Key Commercial Data) | 1 |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 16.000 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 1 |
| Finger protection (Key Commercial Data) | guaranteed |
| Bending test turns (Key Commercial Data) | 135 |
| Nominal current IN (Key Commercial Data) | 41 A |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Short-time current (Key Commercial Data) | 0.72 kA |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Tensile test result (Key Commercial Data) | Test passed |
| Maximum load current (Key Commercial Data) | 41 A |
| Overvoltage category (Key Commercial Data) | III |
| Result of aging test (Key Commercial Data) | Test passed |
| Tight fit on carrier (Key Commercial Data) | NS 35 |
| Nominal cross section (Key Commercial Data) | 6 mm² |
| Number of connections (Key Commercial Data) | 1 |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Tractive force setpoint (Key Commercial Data) | 90 N |
| Conductor cross section solid max. (Dimensions) | 10 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Requirements, voltage drop (Key Commercial Data) | ≤ 4.8 mV |
| Back of the hand protection (Key Commercial Data) | guaranteed |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 7.3 kV |
| Conductor cross section flexible max. (Dimensions) | 10 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Max. AWG conductor cross section, flexible (Dimensions) | 8 |
| Min. AWG conductor cross section, flexible (Dimensions) | 24 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Shock protection test specification (Key Commercial Data) | DIN EN 50274 (VDE 0660-514):2002-11 |
| Conductor cross section tensile test (Key Commercial Data) | 10 mm² |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| 2 conductors with same cross section, solid max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.2 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.2 mm² |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 1.89 kV |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.2 mm² / 0.2 kg |
| Conductor cross section short circuit testing (Key Commercial Data) | 6 mm² |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.31 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Ageing test for screwless modular terminal block temperature cycles (Key Commercial Data) | 192 |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Sectionable neutral terminal, Installation indication: To securely fix the busbar N, trestles must be placed at the beginning and end of each terminal strip, as well as longer strips every 20 cm. You
