UTI 35-PE

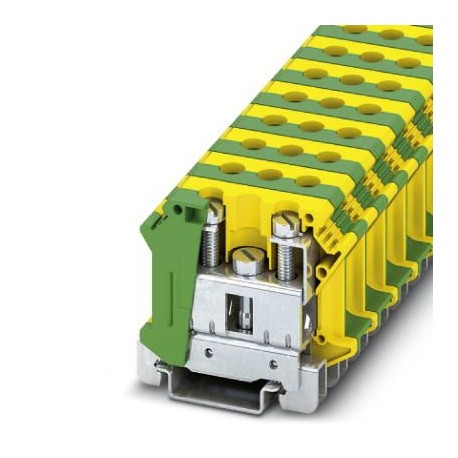

UTI 35-PE 3074091 PHOENIX CONTACT Installation ground terminal block
$9.06USD
1149 in stock
Key Specifications
GTIN:4046356347273
Orderkey:3074091
Catalog page:Page 255 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356347273 |
| Orderkey | 3074091 |
| Catalog page | Page 255 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 15 mm |
| Length (General) | 55 mm |
| Country of origin | CN (China) |
| Note (Dimensions) | Please observe the current carrying capacity of the DIN rails. |
| Custom tariff number | 85369010 |
| Height NS 35/15 (General) | 58.5 mm |
| Screw thread (Dimensions) | M6 |
| Height NS 35/7,5 (General) | 51 mm |
| Color (Key Commercial Data) | green-yellow |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 16 mm |
| Connection method (Dimensions) | Screw connection |
| Potentials (Key Commercial Data) | 2 |
| Tightening torque max (Dimensions) | 3.7 Nm |
| Tightening torque, min (Dimensions) | 3.2 Nm |
| Weight per Piece (excluding packing) | 67.110 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 125 A |
| Nominal voltage UN (Key Commercial Data) | 800 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 35 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 2 |
| Conductor cross section AWG min. (Dimensions) | 18 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-2 |
| Terminal block mounting (Key Commercial Data) | 2.5 Nm ... 3 Nm (PE foot with mounting screw, M5) |
| Conductor cross section solid max. (Dimensions) | 35 mm² |
| Conductor cross section solid min. (Dimensions) | 0.75 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 35 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.75 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-2 |
| Max. AWG conductor cross section, flexible (Dimensions) | 2 |
| Min. AWG conductor cross section, flexible (Dimensions) | 18 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.75 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.75 mm² |
Product Description
Ground terminal block for distribution, Screw connection, Sizing cross-section: 35 mm², cross-section: 0.75 mm² - 35 mm², installation class: NS 35/7.5, NS 35/15, color: yellow-green
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
