UTI 16-PE

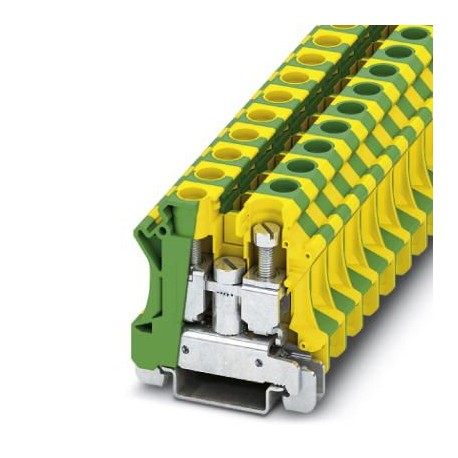

UTI 16-PE 3073830 PHOENIX CONTACT Installation ground terminal block
$6.88USD
1487 in stock
Key Specifications
GTIN:4046356347259
Orderkey:3073830
Catalog page:Page 253 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356347259 |
| Orderkey | 3073830 |
| Catalog page | Page 253 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 12.2 mm |
| Height (General) | 49.9 mm |
| Length (General) | 51 mm |
| Country of origin | CN (China) |
| Note (Dimensions) | Please observe the current carrying capacity of the DIN rails. |
| Custom tariff number | 85369010 |
| Height NS 35/15 (General) | 58 mm |
| Screw thread (Dimensions) | M5 |
| Height NS 35/7,5 (General) | 50.5 mm |
| Color (Key Commercial Data) | green-yellow |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 12 mm |
| Connection method (Dimensions) | Screw connection |
| ASD level (Key Commercial Data) | 0.02 g²/Hz |
| Shock form (Key Commercial Data) | Half-sine |
| Acceleration (Key Commercial Data) | 5 g |
| Tightening torque max (Dimensions) | 3 Nm |
| Test spectrum (Key Commercial Data) | Service life test category 1, class B, body mounted |
| Tightening torque, min (Dimensions) | 2.5 Nm |
| Shock duration (Key Commercial Data) | 30 ms |
| Test frequency (Key Commercial Data) | f1= 5 Hz to f2= 150 Hz |
| Weight per Piece (excluding packing) | 47.820 g |
| Open side panel (Key Commercial Data) | No |
| Test directions (Key Commercial Data) | X-, Y- and Z-axis (pos. and neg.) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Shock test result (Key Commercial Data) | Test passed |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 16 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Test duration per axis (Key Commercial Data) | 5 h |
| Conductor cross section AWG max. (Dimensions) | 4 |
| Conductor cross section AWG min. (Dimensions) | 10 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-2 |
| Terminal block mounting (Key Commercial Data) | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
| Conductor cross section solid max. (Dimensions) | 25 mm² |
| Conductor cross section solid min. (Dimensions) | 6 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 16 mm² |
| Conductor cross section flexible min. (Dimensions) | 6 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-2 |
| Number of shocks per direction (Key Commercial Data) | 3 |
| Test specification, shock test (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Max. AWG conductor cross section, flexible (Dimensions) | 6 |
| Min. AWG conductor cross section, flexible (Dimensions) | 10 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 2.5 mm² |
| Oscillation, broadband noise test result (Key Commercial Data) | Test passed |
| 2 conductors with same cross section, stranded max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 2.5 mm² |
| Test specification, oscillation, broadband noise (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 6 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 6 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 115 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 4 mm² |
Product Description
Ground terminal for distribution, number of connections: 2, number of poles: 1, connection type: Screw connection, 1st floor, right-hand connection, Dimensioning cross-section: 16 mm², cross-section:
