UT 6 BK

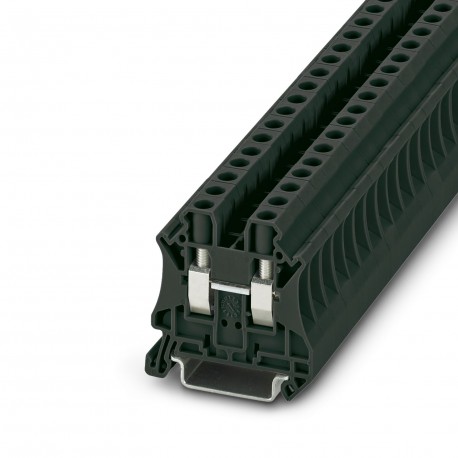

UT 6 BK 3045208 PHOENIX CONTACT Feed-through terminal block
$1.62USD
6209 in stock
Key Specifications
:Machine building
Note:Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Color:black (RAL 9005)
Width:8.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Machine building | |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Color | black (RAL 9005) |
| Width | 8.2 mm |
| Height | 47.7 mm |
| output | (Permanent) |
| Potentials | 1 |
| Bridge data | 39 A / 6 mm² |
| Product type | Feed-through terminal block |
| Screw thread | M4 |
| Torque range | 1.5 Nm ... 1.8 Nm |
| Mounting type | NS 35/7,5 |
| Rated current | 40 A |
| Rated voltage | 690 V |
| Identification | II 2 GD Ex eb IIC Gb |
| Number of rows | 1 |
| End cover width | 2.2 mm |
| List of bridges | Plug-in bridge / FBS 2-8 / 3030284 |
| Nominal current | 41 A |
| Nominal voltage | 1000 V |
| Open side panel | Yes |
| Article revision | 15 |
| Stripping length | 10 mm |
| Cross section AWG | 24 ... 8 (converted acc. to IEC) |
| Tightening torque | 1.5 ... 1.8 Nm |
| Contact resistance | 0.2 mΩ |
| Depth on NS 35/15 | 55 mm |
| Area of application | Railway industry |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 47.5 mm |
| Insulating material | PA |
| Rated surge voltage | 8 kV |
| Maximum load current | 57 A (with 10 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 6 mm² |
| Number of connections | 2 |
| Connection capacity AWG | 24 ... 8 |
| Ex temperature increase | 40 K (44.9 A / 6 mm²) |
| Rated cross section AWG | 8 |
| Ex-certified accessories | 3047028 D-UT 2,5/10 |
| Rated insulation voltage | 630 V |
| for bridging with bridge | 690 V |
| Connection capacity rigid | 0.2 mm² ... 10 mm² |
| Insulating material group | I |
| Internal cylindrical gage | A5 |
| Operating temperature range | -60 °C ... 110 °C |
| Connection capacity flexible | 0.2 mm² ... 6 mm² |
| Conductor cross section rigid | 0.2 mm² ... 10 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.2 mm² ... 10 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| - At cut-to-length bridging with cover | 220 V |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| 2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
| 2 conductors with same cross section, stranded | 0.2 mm² ... 2.5 mm² |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.31 W |
| - At cut-to-length bridging with partition plate | 275 V |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| - At bridging between non-adjacent terminal blocks | 275 V |
| 2 conductors with the same cross-section AWG rigid | 24 ... 14 |
| 2 conductors with the same cross-section AWG flexible | 24 ... 14 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| - At bridging between non-adjacent terminal blocks via PE terminal block | 176 V |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 4 mm² |
Product Description
Feed-through terminal, nominal voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection type: Screw connection, Sizing cross-section: 6 mm², cross-section: 0.2 mm² - 10 mm², mounti
