UT 4-HESILED 24-P/P

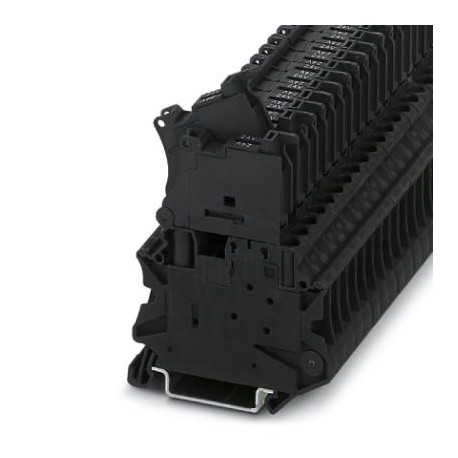

UT 4-HESILED 24-P/P 3046540 PHOENIX CONTACT Fuse modular terminal block
$0.00USD
4068 in stock
Key Specifications
GTIN:4046356148092
Note:Made to Order (non-returnable)
Orderkey:3046540
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356148092 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3046540 |
| Packing unit | 50 pc |
| Width (General) | 6.2 mm |
| Length (General) | 57.8 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369095 |
| (Key Commercial Data) | max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit) |
| Minimum order quantity | 50 pc |
| Height NS 35/15 (General) | 80.5 mm |
| Screw thread (Dimensions) | M3 |
| Fuse (Key Commercial Data) | G / 5 x 20 |
| Height NS 35/7,5 (General) | 73 mm |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 9 mm |
| Connection method (Dimensions) | Screw connection |
| Fuse type (Key Commercial Data) | Glass / ceramics / ... |
| Current LED (Key Commercial Data) | 6.3 A |
| Tightening torque max (Dimensions) | 0.8 Nm |
| Tightening torque, min (Dimensions) | 0.6 Nm |
| Weight per Piece (excluding packing) | 17.820 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Internal cylindrical gage (Dimensions) | A4 |
| Number of levels (Key Commercial Data) | 1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| LED current range (Key Commercial Data) | 0.31 mA ... 0.95 mA |
| LED voltage range (Key Commercial Data) | 12 V AC/DC ... 30 V AC/DC |
| Nominal current IN (Key Commercial Data) | 6.3 A |
| Nominal voltage UN (Key Commercial Data) | 24 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Rated surge voltage (Key Commercial Data) | 4 kV |
| Maximum load current (Key Commercial Data) | 6.3 A (the current is determined by the fuse used) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 10 |
| Conductor cross section AWG min. (Dimensions) | 26 |
| Conductor cross section solid max. (Dimensions) | 6 mm² |
| Conductor cross section solid min. (Dimensions) | 0.14 mm² |
| Insulating material group (Key Commercial Data) | I |
| Maximum power dissipation (Key Commercial Data) | max. 1.6 W (With single arrangement of the fuse terminal block in the event of overload) |
| Conductor cross section flexible max. (Dimensions) | 6 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-3 |
| Switching capacity (UL 1077) (Key Commercial Data) | 6.3 A |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-3 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| 2 conductors with same cross section, solid max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.14 mm² |
| Maximum current with single arrangement (Key Commercial Data) | 6.3 A |
| 2 conductors with same cross section, stranded max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.14 mm² |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.6 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.14 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.14 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.14 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Rail terminal for fuse, with threaded females for test sockets to accommodate test pins, fuse type: Glass/ceramic/..., fuse type: G/5 x 20, nominal voltage: 24 V, nominal current: 6.3 A, number of pol
