UT 16

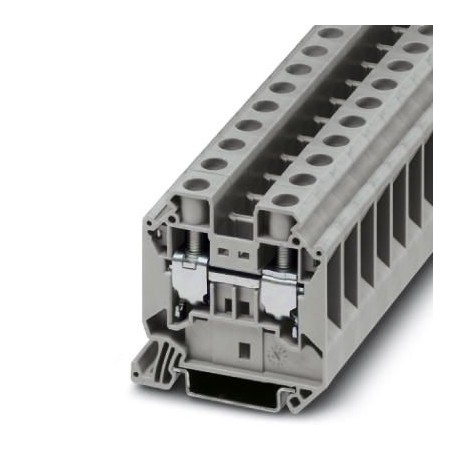

UT 16 3044199 PHOENIX CONTACT Feed-through terminal block
$1.71USD
5893 in stock
Key Specifications
GTIN:4017918977535
Orderkey:3044199
Catalog page:Page 253 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918977535 |
| Orderkey | 3044199 |
| Catalog page | Page 253 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 12.2 mm |
| Height (General) | 54.4 mm |
| Length (General) | 55.5 mm |
| Country of origin | TR (Turkey) |
| Note (Dimensions) | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | 25 mm² / 4.5 kg |
| Minimum order quantity | 50 pc |
| End cover width (General) | 2.2 mm |
| Height NS 35/15 (General) | 62.5 mm |
| Screw thread (Dimensions) | M5 |
| Height NS 35/7,5 (General) | 55 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 14 mm |
| Connection method (Dimensions) | Screw connection |
| Setpoint (Key Commercial Data) | 5 N |
| ASD level (Key Commercial Data) | 1.857 (m/s2)2/Hz |
| Potentials (Key Commercial Data) | 1 |
| Shock form (Key Commercial Data) | Half-sine |
| Acceleration (Key Commercial Data) | 5 g |
| Tightening torque max (Dimensions) | 3 Nm |
| Test spectrum (Key Commercial Data) | Service life test category 1, class B, body mounted |
| Tightening torque, min (Dimensions) | 2.5 Nm |
| Shock duration (Key Commercial Data) | 30 ms |
| Test frequency (Key Commercial Data) | f1= 5 Hz to f2= 150 Hz |
| Weight per Piece (excluding packing) | 30.270 g |
| Open side panel (Key Commercial Data) | Yes |
| Test directions (Key Commercial Data) | X-, Y- and Z-axis (pos. and neg.) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | A7 |
| Number of levels (Key Commercial Data) | 1 |
| Finger protection (Key Commercial Data) | guaranteed |
| Shock test result (Key Commercial Data) | Test passed |
| Bending test turns (Key Commercial Data) | 135 |
| Nominal current IN (Key Commercial Data) | 76 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Short-time current (Key Commercial Data) | 1.92 kA |
| Area of application (Key Commercial Data) | Railway industry |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Tensile test result (Key Commercial Data) | Test passed |
| Maximum load current (Key Commercial Data) | 101 A (with 25 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Tight fit on carrier (Key Commercial Data) | NS 35 |
| Nominal cross section (Key Commercial Data) | 16 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Test duration per axis (Key Commercial Data) | 5 h |
| Conductor cross section AWG max. (Dimensions) | 4 |
| Conductor cross section AWG min. (Dimensions) | 16 |
| Connection in acc. with standard (Dimensions) | IEC/EN 60079-7 |
| Tractive force setpoint (Key Commercial Data) | 135 N |
| Conductor cross section solid max. (Dimensions) | 25 mm² |
| Conductor cross section solid min. (Dimensions) | 1.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Back of the hand protection (Key Commercial Data) | guaranteed |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 9.8 kV |
| Conductor cross section flexible max. (Dimensions) | 16 mm² |
| Conductor cross section flexible min. (Dimensions) | 1.5 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Number of shocks per direction (Key Commercial Data) | 3 |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Test specification, shock test (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Max. AWG conductor cross section, flexible (Dimensions) | 4 |
| Min. AWG conductor cross section, flexible (Dimensions) | 16 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Shock protection test specification (Key Commercial Data) | IEC 60529:2001-02 |
| Conductor cross section tensile test (Key Commercial Data) | 25 mm² |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| 2 conductors with same cross section, solid max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 1 mm² |
| Oscillation, broadband noise test result (Key Commercial Data) | Test passed |
| 2 conductors with same cross section, stranded max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 1 mm² |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 2.2 kV |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Bending test conductor cross section/weight (Key Commercial Data) | 1.5 mm² / 0.4 kg |
| Conductor cross section short circuit testing (Key Commercial Data) | 16 mm² |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 2.43 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Test specification, oscillation, broadband noise (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 1 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 1 mm² |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.75 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Step terminal, rated voltage: 1000 V, rated current: 76 A, connection type: Screw connection, number of connections: 2, section: 1.5 mm² - 25 mm², AWG: 16 - 4, width: 12.2 mm, height: 54.4 mm, colour:
