USST 4-MT P/P

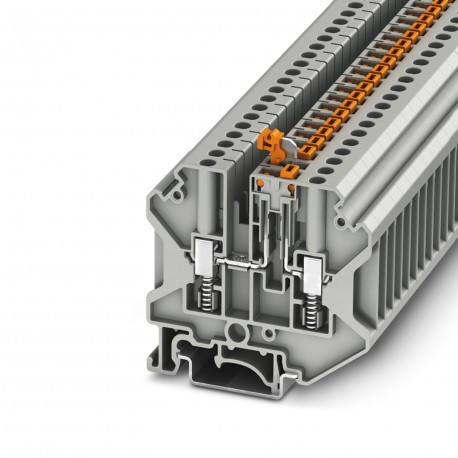

USST 4-MT P/P 3070302 PHOENIX CONTACT Knife disconnect terminal block
$4.98USD
2039 in stock
Key Specifications
:4 mm² / 0.9 kg
Color:gray (RAL 7042)
Width:6.2 mm
Height:63.4 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 4 mm² / 0.9 kg | |
| Color | gray (RAL 7042) |
| Width | 6.2 mm |
| Height | 63.4 mm |
| Result | Test passed |
| Spectrum | Service life test category 1, class B, body mounted |
| ASD level | 1.857 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 150 Hz |
| Potentials | 1 |
| Pulse shape | Half-sine |
| Revolutions | 135 |
| Acceleration | 0.8g |
| Product type | Disconnect terminal block |
| Screw thread | M3 |
| Mounting type | NS 35/7,5 |
| Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| Shock duration | 30 ms |
| Depth on NS 32 | 62.3 mm |
| End cover width | 2.2 mm |
| Nominal current | 20 A |
| Nominal voltage | 500 V (up to 690 V for pollution degree II) |
| Open side panel | Yes |
| Test directions | X-, Y- and Z-axis |
| Article revision | 06 |
| Stripping length | 10 mm |
| Time of exposure | 30 s |
| Cross section AWG | 24 ... 10 (converted acc. to IEC) |
| Tightening torque | 0.6 ... 0.8 Nm |
| Depth on NS 35/15 | 64.8 mm |
| Degree of pollution | 3 |
| Depth on NS 35/7,5 | 57.3 mm |
| Insulating material | PA |
| Rated surge voltage | 6 kV |
| Test force setpoint | 1 N |
| Maximum load current | 20 A (with 6 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 4 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 7.3 kV |
| Test duration per axis | 5 h |
| Insulating material group | I |
| Internal cylindrical gage | A4 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Conductor cross section/weight | 0.2 mm² / 0.2 kg |
| Number of shocks per direction | 3 |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Permissible humidity (operation) | 20 % ... 90 % |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.02 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Product Description
Blade interruptible terminal block, with threaded sockets for test sockets to accommodate test pins, nominal voltage: 500 V, nominal current: 20 A, 1st floor, connection type: Screw connection with sp
