USP-500-15

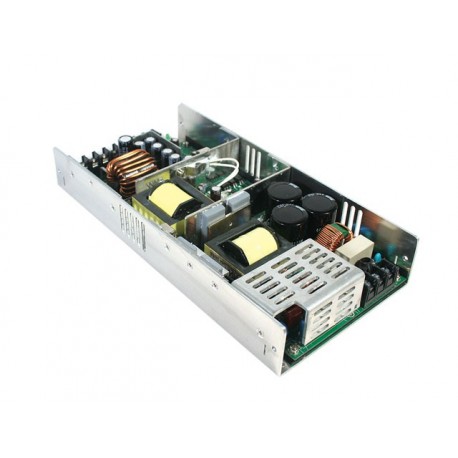

USP-500-15 MEANWELL AC-DC Single output power supply, Output 15VDC / 33.5A, U-bracket low profile format 41m..
$0.00USD
3818 in stock
Key Specifications
Name:USP-500-15
Format:Open Format
Series:USP-500
Approvals:CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | USP-500-15 |
| Format | Open Format |
| Series | USP-500 |
| Approvals | CE, UL |
| Power (W) | 405,00 |
| Subformato | Or |
| Width (mm) | One hundred twenty seven |
| Height (mm) | Forty one |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 15,00 |
| Peak Power (W) | 502.5 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | Two hundred fifty four |
| Long Description | Power supply in an open format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage15vdc.Adjustable by potentiometer (13,5-16,5 Vdc).Output intensity33.5 To. Range of output current 0-33,5 according To the demand load.Power:405W.Factor Corrector, Power>0,95.Efficiency typical:90%.Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:254 x 127 x 41.3 years of warranty.Manufacturer: MEAN WELL.Series USP-500 switching power supplies in format, semi-open, U-type, with a correction factor of power, active and high efficiency.Have a low profile of only 41mm in height and their technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame).
