USP-350-12

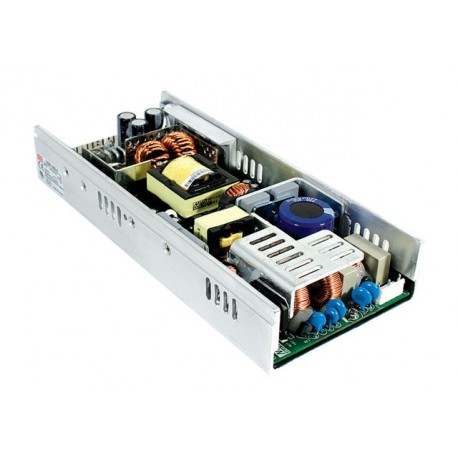

USP-350-12 MEANWELL AC-DC Single output power supply, Output 12VDC / 29.2A, U-bracket low profile format 38mm
$0.00USD
3171 in stock
Key Specifications
Name:USP-350-12
State:Do not Use for New Designs
Stock:Yes
Format:Open Format
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | USP-350-12 |
| State | Do not Use for New Designs |
| Stock | Yes |
| Format | Open Format |
| Series | USP-350 |
| Approvals | CE, UL |
| Power (W) | 300,00 |
| Subformato | Or |
| Width (mm) | 101.50 |
| Height (mm) | 38.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 12,00 |
| Peak Power (W) | 350.4 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 235.20 |
| Long Description | Power supply in an open format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage12vdc.Adjustable by potentiometer (10,8-13,2 Vdc).Output intensity29,2 To. Range of output current 0-29,2 according To the demand load.Power:300W.Factor Corrector, Power>0,94.Efficiency typical:88%.Working temperature: from-10up+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:235,2 x 101,5 x 38.3 years of warranty.Manufacturer: MEAN WELL.Series USP-350 are switching power supplies format semi-open, U-type, with a correction factor of power, active and high efficiency.Have a low profile of only 38mm in height and their technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame).
