USP-150-36

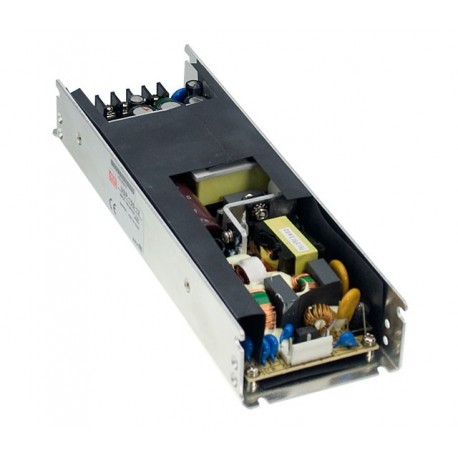

USP-150-36 MEANWELL AC-DC Single output power supply, Output 36VDC / 4.2A, U-bracket low profile format 33mm
$0.00USD
4114 in stock
Key Specifications
Name:USP-150-36
State:Do not Use for New Designs
Format:Open Format
Series:USP-150
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | USP-150-36 |
| State | Do not Use for New Designs |
| Format | Open Format |
| Series | USP-150 |
| Approvals | CE, UL |
| Power (W) | 151,20 |
| Subformato | Or |
| Width (mm) | 67.4 |
| Height (mm) | Thirty three |
| AC input Max | 295,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 36,00 |
| Peak Power (W) | 151.2 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | Two hundred fifteen |
| Long Description | Power supply in an open format(Open-Frame).Range of universal Input90-295Vca47-63Hz.Output voltage36Vcc.Adjustable by potentiometer (32,4-39,6 Vdc).Output intensity4.2 To. Range of output current 0-4,2 according To the demand load.Power:151,2 W.Factor Corrector, Power>0,96.Efficiency typical:93%.Working temperature: from-30up+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:215 x 67,4 x 33.3 years of warranty.Manufacturer: MEAN WELL.Series USP-150 are all switching power supplies format semi-open, U-type, with a correction factor of power, active and high efficiency.Have a low profile only 33mm in height and their technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame).
