USGC121E

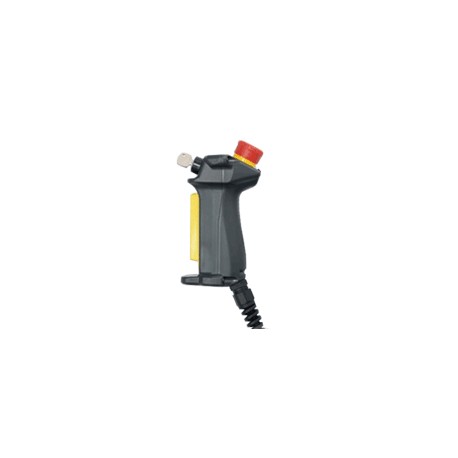

USGC121E SG-C1-21-E PANASONIC Enable Grip Switch With emergency stop switch
$0.00USD
3196 in stock
Key Specifications
:Ue
DC:Resistive load (DC-12)
Ie:Grip switch
Item:Specifications
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Ue | |
| DC | Resistive load (DC-12) |
| Ie | Grip switch |
| Item | Specifications |
| Product | Enable grip switch |
| Part Number | SG-C1-21-E |
| Product name | Enable grip switch SG-C1 |
| Wiring style | Solder terminal |
| Product Number | SG-C1-21-E |
| Applicable standards | IEC 60947-5-1, EN 60947-5-1, JIS C 8201-5-1, GS-ET-22, UL 508, CSA C22.2 No.14 |
| Thermal current (Ith) | 3 A (Emergency stop switch : 5 A) |
| Applicable regulations | CE Marking [Machinery Directive (2006/42/EC), RoSH Directive], UKCA Marking [Supply of Machinery (Safety) Regulations (2008 No.1597), RoSH Regulations] |
| Inductive load (DC-13) | 0.7A |
| Inductive load (ACー15) | - |
| Rubber boot material / Color | Silicone rubber /(Yellow)(Note): Silicone rubber: Can be used in general factories. Remains flexible in cold temperatures. Suitable in applications with a wide operating temperature range. |
| Rated insulation voltage (Ui) | 250 V (Momentary pushbutton switch and key selector switch : 125 V) /Models with indicator : 30 V |
| Operating condition : Altitude | 2,000 m6,561.68 ftmax. |
| Impulse withstand voltage (Uimp) | 2.5 kV (Momentary pushbutton switch and key selector switch : 1.5 kV) |
| Operating condition : Ambient humidity | 45 to 85 % RH |
| Operating condition : Pollution degree | 3 (Inside 2) |
| Push monitor switch(Terminal No. 31-32) | AC |
| Applicable standards : Standards for use | ISO 12100 / EN ISO 12100, IEC 60204-1 / EN 60204-1, ISO 11161 / EN ISO11161, ISO 10218-1 / EN ISO 10218-1, ANSI/RIA/ISO 10218-1, ANSI/RIA R15.06, ANSI B11.19, ISO 13849-1: 2015 / EN ISO 13849-1: 2015 |
| Operating condition : Ambient temperature | -25 to +60 ℃-13 to +140 ℉(No dew condensation or icing allowed)Storage : -40 to +80 ℃-40 to +176 ℉ |
| Contact configuration : Push monitor switch | With(1NC) |
| Emergency stop switch(Terminal No. 1-2, 1-2) | AC |
| Contact configuration : 3 position enabling switch | 2contacts |
| Rated operational voltage (Ue) / Rated operational current (Ie) | Ue30V125V250VIeGrip switch3 position enabling switch(Terminal No.: NO1-C1, NO2-C2) |
| Contact configuration : Additional control units : Control unit (A) | Without |
| Contact configuration : Additional control units : Control unit (B) | Without |
| Contact configuration : Additional control units : Emergency stop switch | With(2NC) |
| Contact configuration : Additional control units : Indicator (green) (C) | Without |
| Momentary pushbutton switch/ Key selector switch(Terminal No.C1-NO1, NC1C2-NO2, NC2 ) | AC |
Product Description
Validation knob with emergency stop switch
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
