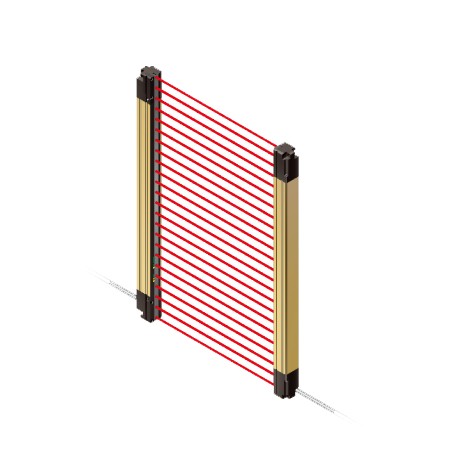

USF4BH16V2 SF4B-H16(V2) PANASONIC Safety light curtain type 4, version 2, hand protection 310mm, PNP/NPN, co..
$0.00USD
3769 in stock
Key Specifications
Item:Specifications
PFHD:2.0 × 10–9
MTTFD:100 years or more
Details:Min. sensing object ø25 mmø0.984 intype (20 mm0.787 inbeam pitch)
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| PFHD | 2.0 × 10–9 |
| MTTFD | 100 years or more |
| Details | Min. sensing object ø25 mmø0.984 intype (20 mm0.787 inbeam pitch) |
| Product | Safety Light Curtain Type 4 |
| Material | Enclosure: AluminiumUpper and lower edges: IronSensing surface: Polycarbonate / Polyester resinCap: PBT |
| Accessories | SF4B-TR25 (Test rod): 1 No |
| Part Number | SF4B-H16(V2) |
| Cable length | Total length up to 50 m164.042 ftis possible for both emitter and receiver, with optional mating cables(Note) The cable can be extended within 30 m98.425 ft(for emitter / receiver) when two light curtains are connected in series, within 20 m65.617 ftwhen three light curtains are connected in series. Furthermore, when the muting lamp is used, the cable can be extended within 40 m131.234 ft(for emitter / receiver). |
| Product name | Safety Light Curtain Type 4 SF4B Ver.2(Discontinued) |
| Power voltage | 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Response time | OFF response: 14 ms or less, ON response: 80 to 90 ms |
| Product Number | SF4B-H16(V2) |
| Muting function | Incorporated(Note) Please use 12-core cable. |
| Operating range | 0.3 to 9 m0.984 to 29.528 ft(Note) The operating range is the possible setting distance between the emitter and the receiver. |
| Emitting element | Infrared LED (Peak emission wavelength: 870 nm0.034 mil) |
| Connecting method | Connector |
| Override function | Incorporated(Note) Please use 12-core cable. |
| Protective height | 310 mm12.205 in(Note:In the case of "When used as safety device for presses in China", the distance between the center of the first beam axis and the center of the last beam axis of the device becomes the protective height. For details, refer to "Definition of sensing heights".) |
| Interlock function | Incorporated [Manual reset / Auto reset (Note)](Note) The manual reset and auto reset are possible to be switched depending on the wiring status. |
| Optional functions | Fixed blanking, floating blanking, auxiliary output switching, interlock setting changing, external relay monitor setting changing, muting setting changing, protecting, light emitting amount control(Note) In case of using optional function, the handy-controller (SFB-HC) (optional) is required. However, a handy-controller cannot be used with the SF4B-x-01<V2> and the SF-C14EX-01. |
| Ambient illuminance | Incandescent light: 3,500 lx or less at the light-receiving face |
| Current consumption | Emitter: 70 mA or lessReceiver: 95 mA or less |
| Min. sensing object | ø25 mmø0.984 inopaque object(Note) When the floating blanking function is used, the size of the min. sensing object is changed. |
| No. of beam channels | 16 |
| Emission halt function | Incorporated |
| Effective aperture angle | plus or minus 2.5°or less [for an operating range exceeding 3 m9.843 ft(conforming to IEC 61496-2 / ANSI/UL 61496-2)] |
| Applicable standards:China | GB/T 4584(Note) PLe SIL3 compliant from production in August 2009. |
| Applicable standards:Japan | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL3)(Note) PLe SIL3 compliant from production in August 2009. |
| Applicable standards:Europe | EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL3), EN 55011, EN 50178, EN 61000-6-2(Note) PLe SIL3 compliant from production in August 2009. |
| CE marking directive compliance | Machinery Directive, EMC Directive, RoHS Directive |
| Control outputs (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open-collector transistor (switching method)- When selecting PNP output: Max. source current 200 mA, When selecting NPN output: Max. sink current 200 mA- Applied voltage: same as supply voltage (When selecting PNP output: between the control output and +V, When selecting NPN output: between the control output and 0 V)- Residual voltage: 2.5V or less (When selecting PNP output: source current 200 mA, when selecting NPN output: sink current 200 mA) (when using 20 m65.617 ftlength cable) |
| Interference prevention function | Incorporated(Note) Please use 12-core cable. |
| Applicable standards:North America | ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14, OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06(Note) PLe SIL3 compliant from production in August 2009. |
| External device monitoring function | Incorporated |
| Auxiliary output (Non-safety output) | PNP open-collector transistor / NPN open-collector transistor (switching method)- When selecting PNP output: Max. source current 60 mA, When selecting NPN output: Max. sink current 60 mA- Applied voltage: same as supply voltage (When selecting PNP output: between the auxiliary output and +V, When selecting NPN output: between the auxiliary output and 0 V)- Residual voltage: 2.5V or less (When selecting PNP output: source current 60 mA, when selecting NPN output: sink current 60 mA) (when using 20 m65.617 ftlength cable) |
| Weight(Total of emitter and receiver) | 660 g approx. |
| Applicable standards:South Korea (S-Mark) | S1-G-35-2005, S2-W-11-2003(Note) PLe SIL3 compliant from production in August 2009. |
| Environmental resistance:Ambient humidity | 30 to 85 % RH, Storage: 30 to 95 % RH |
| Environmental resistance:Shock resistance | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Applicable standards:International standard | IEC 61496-1/2 (Type 4), ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3)(Note) PLe SIL3 compliant from production in August 2009. |
| Environmental resistance:Ambient temperature | -10 to +55 °+14 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +70 °-13 to +158 ℉ |
| Environmental resistance:Degree of protection | IP67 / IP65 (IEC) |
| Environmental resistance:Vibration resistance | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Environmental resistance:Insulation resistance | 20 MOhm , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Control outputs (OSSD 1, OSSD 2):Operation mode | ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the safety light curtain or the synchronization signal)(Note) The outputs are not ''OFF'' when muting function is active even if the beam channel is interruped.(Note) In case the blanking function is valid, the operation mode is changed. |
| Control outputs(OSSD1, OSSD2):Protection circuit | Incorporated |
| Environmental resistance:Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Auxiliary output (Non-safety output):Responce time | OFF replay: 34 ms or less, ON replay 110 ms or less |
| Auxiliary output (Non-safety output):Operation mode | OFF when control outputs are ON, ON when control outputs are OFF (Factory setting; operating mode can be changed using the SFB-HC handy-controller(optional)). |
| Protective height : China Press compliant (GB/T 4584) | 300mm11.811 in |
| Auxiliary output (Non-safety output):Protection circuit | Incorporated |
