USEN 14 N

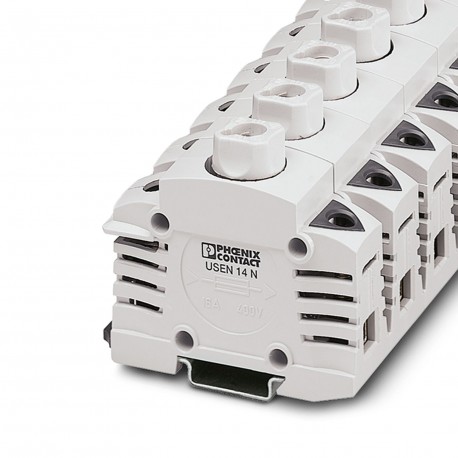

USEN 14 N 3048357 PHOENIX CONTACT Fuse modular terminal block
$20.23USD
527 in stock
Key Specifications
:NS 35/15
Fuse:D 01 / E 14
Color:beige (RAL 7032)
Pitch:27 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NS 35/15 | |
| Fuse | D 01 / E 14 |
| Color | beige (RAL 7032) |
| Pitch | 27 mm |
| Width | 27 mm |
| Height | 82.7 mm |
| Fuse type | Screw cartridge |
| Potentials | 1 |
| Product type | Fuse terminal block |
| Screw thread | M6 |
| Mounting type | NS 35/7,5 |
| Number of rows | 1 |
| Nominal current | 16 A (the current is determined by the fuse used) |
| Nominal voltage | 400 V (the voltage is determined by the fuse used) |
| Open side panel | No |
| Article revision | 00 |
| Stripping length | 19 mm |
| Cross section AWG | 14 ... 2 (converted acc. to IEC) |
| Tightening torque | 3.5 ... 4 Nm |
| Depth on NS 35/15 | 79.4 mm |
| Degree of pollution | 2 |
| Depth on NS 35/7,5 | 71.9 mm |
| Note on application | for NEOZED fuse-links |
| Rated surge voltage | 6 kV |
| Maximum load current | 16 A (with 35 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 35 mm² |
| Number of connections | 2 |
| Insulating material group | IIIa |
| Internal cylindrical gage | B8 |
| Conductor cross section rigid | 1.5 mm² ... 35 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 1.5 mm² ... 35 mm² |
| Permissible humidity (operation) | 20 % ... 90 % |
| Flammability rating according to UL 94 | V2 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 14 ... 2 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Cross-section with insertion bridge, rigid | 25 mm² |
| 2 conductors with same cross section, solid | 1.5 mm² ... 10 mm² |
| Cross-section with insertion bridge, flexible | 25 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 10 mm² |
| Maximum power dissipation for nominal condition | 4.06 W |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 25 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 25 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 10 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² |
Product Description
Fuse terminals, for NEOZED fuse cartridges
