US-TM 100 CUS

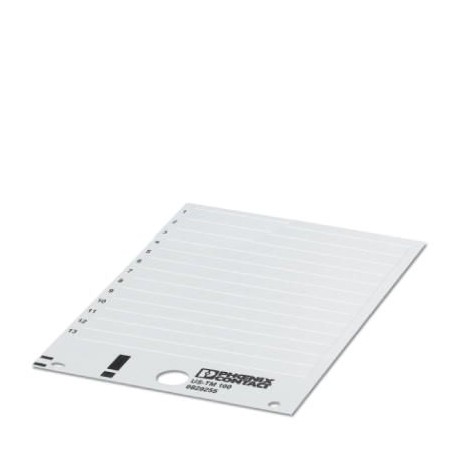

US-TM 100 CUS 0829948 PHOENIX CONTACT Marker for terminal blocks
$0.00USD
3041 in stock
Key Specifications
GTIN:4046356609982
Note:Made to Order (non-returnable)
Orderkey:0829948
Catalog page:Page 90 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356609982 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0829948 |
| Catalog page | Page 90 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| (Ambient conditions) | 0801371 THERMOMARK-RIBBON 110-TC |
| Type (Ambient conditions) | flat |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5146464 THERMOMARK CARD |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | PVC |
| Components (Ambient conditions) | Silicone-free |
| Ink ribbon (Ambient conditions) | 5146451 THERMOMARK CARD-US-MAG1 |
| Width (a) (Key Commercial Data) | 104 mm |
| Height (c) (Key Commercial Data) | 0.5 mm |
| Length (b) (Key Commercial Data) | 9.8 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 15.280 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | snap into universal marker groove |
| Recommended storage conditions (Dimensions) | 10-30 °C / 40-70 % relative humidity. Storage in the original packaging is recommended prior to processing. |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 80 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 13 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 1 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | following DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Terminal marker, available: per card, white, labeled according to customer's instructions, mounting class: fit into universal label slot, usable surface: 104 x 9.8 mm, Number of individual indexes: 13
