US-PML-M100 (D50)

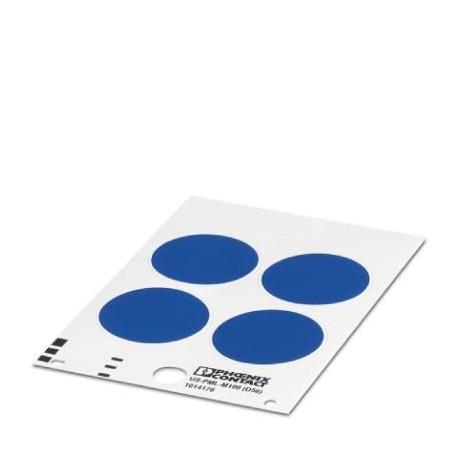

US-PML-M100 (D50) 1014176 PHOENIX CONTACT Mandatory sign
$0.00USD
3729 in stock
Key Specifications
GTIN:4046356786447
Note:Made to Order (non-returnable)
Orderkey:1014176
Catalog page:Page 374 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356786447 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1014176 |
| Catalog page | Page 374 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39199080 |
| Minimum order quantity | 10 pc |
| Type (Ambient conditions) | Round |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | blue/white |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5148888 THERMOMARK PRIME |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | PVC |
| Printing (Ambient conditions) | Blank |
| Diameter (Key Commercial Data) | 50.00 mm |
| Procedure (Ambient conditions) | A |
| Components (Ambient conditions) | Silicone-free |
| Ink ribbon (Ambient conditions) | 0803376 TMP-RIBBON 110 WH 100 |
| Width (a) (Key Commercial Data) | 0 mm |
| Height (c) (Key Commercial Data) | 0 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Foil strength (Ambient conditions) | 50 µm |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 5.370 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| REACh SVHC (Standards and Regulations) | Reaction mass of DOTE and MOTE |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | > 8 °C |
| Recommended storage conditions (Dimensions) | 4°C - 40°CStorage in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 90 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 4 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | following DIN 50018:2013-05 |
Product Description
Obligation plate, Card, blue/white, unlabeled, labelable with: THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: glued, diameter: 50 mm, useful surface: d: 50mm, Number of indivi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
