URELG 7-PMTK

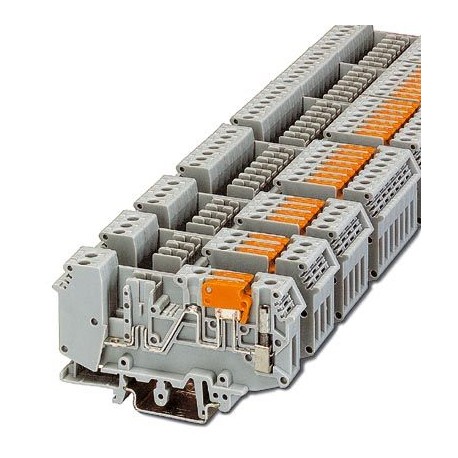

URELG 7-PMTK 2820725 PHOENIX CONTACT Basic terminal block
$0.00USD
3781 in stock
Key Specifications
GTIN:4017918076856
Note:Made to Order (non-returnable)
Orderkey:2820725
Catalog page:Page 95 (IF-2005)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918076856 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2820725 |
| Catalog page | Page 95 (IF-2005) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Color (Dimensions) | gray |
| Custom tariff number | 85369010 |
| Minimum order quantity | 5 pc |
| Screw thread (General) | M3 |
| Stripping length (General) | 7 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 109.5 mm |
| Width (Key Commercial Data) | 45.6 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 86.5 mm |
| Nominal current IN (Dimensions) | 16 A (current is determined by the coupling connector.) |
| Nominal voltage UN (Dimensions) | 400 V (voltage is determined by the coupling connector.) |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 7 |
| Weight per Piece (excluding packing) | 138.300 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 4 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | CSA |
Product Description
Base terminal blocks with test socket on both sides and knife interrupt for NS 32 and NS 35/7.5 rail, with end cap, for ST-REL..., ST-OV... connectors and ST-OE..., 7-pole
