URELG 4

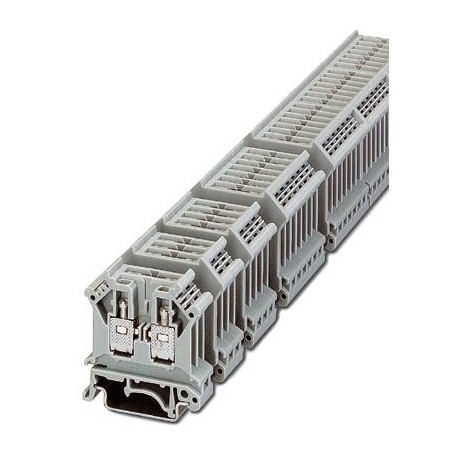

URELG 4 2820149 PHOENIX CONTACT Basic terminal block
$0.00USD
4200 in stock
Key Specifications
GTIN:4017918076795
Orderkey:2820149
Catalog page:Page 95 (IF-2005)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918076795 |
| Orderkey | 2820149 |
| Catalog page | Page 95 (IF-2005) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (Connection data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Color (Dimensions) | gray |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (General) | M3 |
| Stripping length (General) | 9 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 112 mm |
| Width (Key Commercial Data) | 27 mm |
| China RoHS (Connection data) | Environmentally Friendly Use Period = 50 |
| Height (Key Commercial Data) | 42.5 mm |
| Nominal current IN (Dimensions) | 16 A (current is determined by the coupling connector.) |
| Nominal voltage UN (Dimensions) | 400 V (voltage is determined by the coupling connector.) |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 4 |
| Weight per Piece (excluding packing) | 40.950 g |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 4 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
Product Description
Base terminal blocks with screw connection for rail NS 32 and NS 35/7.5, with end cover, for ST-REL connectors..., ST-OV... and ST-OE..., 4-pole
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
