URD/T0

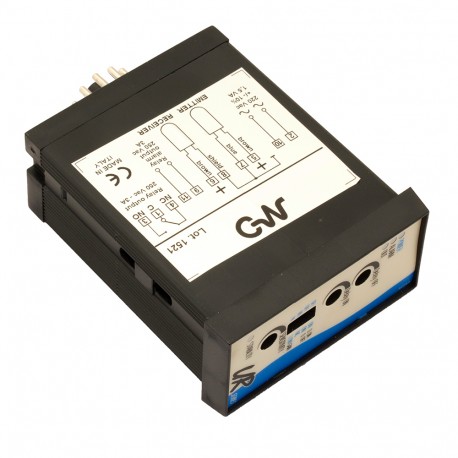

URD/T0 MICRO DETECTORS Photoelectric sensor amplification 24VAC with timer
$0.00USD
4824 in stock
Key Specifications
Weight:110g
Approvals:CE
Frequency:50…60Hz
Dimensions:36x90x67mmù
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 110g |
| Approvals | CE |
| Frequency | 50…60Hz |
| Dimensions | 36x90x67mmù |
| LED indicators | green (supply)red (output state)green (stability)red (alarm) |
| Timer functions | yes |
| Housing Material | Noryl 90 V-0 |
| Operating output | Relay NO+NC |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 |
| Operating Voltage | 24Vac |
| Voltage tolerance | +10% … -15% |
| Max output current | 3A |
| Max output voltage | 250V |
| Switching frequency | 10Hz |
| Degree of protection | IP20 |
| Operating temperature | -10°C … +50°C (without freeze) |
| No-Load supply current | 1,5 VA |
| Relay with alarm output | no |
| Reset time (relè energized) | ≤ 40ms |
| Operating time (relè de-energized) | ≤ 40ms |
Product Description
URD/T0 Photoelectric sensor Amplific. 24VAC with timer
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
