UQ1A/G6-0E

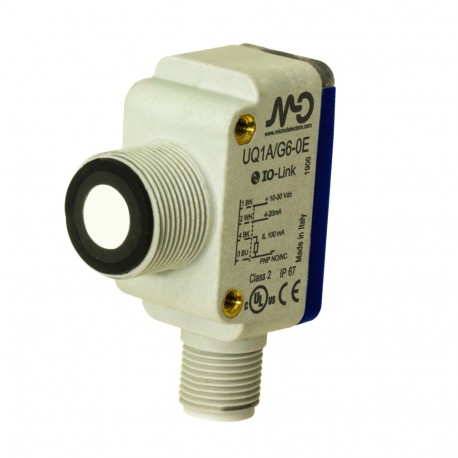

UQ1A/G6-0E MICRO DETECTORS Ultrasonic sensor hybrid housing, 40-300 mm. analogic 4-20 mA+ PNP NO/NC, conn. M..
$0.00USD
4232 in stock
Key Specifications
Material:PBT
Approvals:CEcULus
Dimensions:53x38x20mm
Hysteresis:1%
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Material | PBT |
| Approvals | CEcULus |
| Dimensions | 53x38x20mm |
| Hysteresis | 1% |
| Resolution | 3mm |
| Connections | M12 Plug |
| Output type | PNP + uscita analogica in corrente 4…20mA |
| Load current | 100mA |
| Response time | 400ms |
| LED indicators | verde: echo - giallo: uscita |
| Leakage current | 10μA @ 30Vcc |
| Linearity error | 1% |
| Output Function | NO/NC |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 1Nm |
| Max ripple content | 5% |
| Output voltage drop | 2,2Vmax. @ IL=100 mA |
| Storage temperature | - 35°C…+ 80° C senza ghiaccio |
| Switching frequency | 8Hz |
| Thermal drift of Sr | ±5% |
| Degree of protection | IP67 |
| Supplied Accessories | 1 M18x1 nut |
| Transducer Frequency | 300kHz |
| thermal compensation | Yes |
| Operating temperature | - 20°C…+ 70°C |
| Shocks and vibrations | IEC EN60947-5-2 / 7.4 |
| No-Load supply current | ≤35mA |
| Sensitivity adjustment | pulsante di Teach-in |
| Effective Aperture Angle | 7° ± 2° |
| Nominal sensing distance | 300mm |
| Short-circuit protection | si |
| Reverse Polarity Protection | si |
| Impulsive Overvoltage Protection | si |
| Minimum sensing distance (blind zone) | 40mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
