UPMR65P

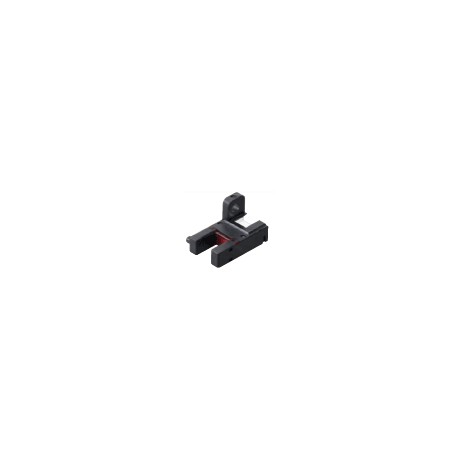

UPMR65P PM-R65-P PANASONIC u-shape type, R-shape, 6mm, PNP, connector
$0.00USD
3909 in stock
Key Specifications
Item:Specifications
Output:PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Remark:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.
Weight:Net weight: 3 g approx.Gross weight: 3 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Output | PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
| Weight | Net weight: 3 g approx.Gross weight: 3 g approx. |
| Details | Compact / Connector built-in type [R type] |
| Product | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Material | Enclosure: PBTDisplay section: Polycarbonate |
| Hysteresis | 0.05 mm0.002 inor less |
| Protection | IP40 (IEC) |
| Part Number | PM-R65-P |
| Cable length | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note) If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. |
| Product name | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Connector built-in type] PM-65 |
| Repeatability | 0.01 mm0.0004 inor less |
| Response time | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) Refer to the note on the specification page for the response frequency. |
| Sensing range | 6 mm0.236 in(fixed) |
| Product Number | PM-R65-P |
| Supply voltage | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Ambient humidity | 5 to 85 % RH, Storage: 5 to 95 % RH |
| Emitting element | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| Pollution degree | 3 |
| Shock resistance | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Ambient illuminance | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Ambient temperature | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ |
| Current consumption | 15 mA or less |
| Operation indicator | Orange LED (lights up under light received condition) |
| Vibration resistance | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Minimum sensing object | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| Output:Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Output:Short-circuit protection | Incorporated |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification |
Product Description
Miniature and compact horseshoe photoelectric sensor, type R, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) PNP, with connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
