UMK- 8 RM 60DC/MKDS

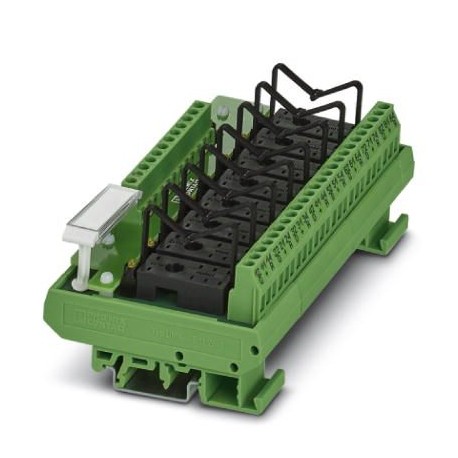

UMK- 8 RM 60DC/MKDS 2972932 PHOENIX CONTACT Multiple relay module
$0.00USD
4617 in stock
Key Specifications
GTIN:4017918088866
Note:Made to Order (non-returnable)
Orderkey:2972932
Catalog page:Page 551 (C-7-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918088866 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2972932 |
| Catalog page | Page 551 (C-7-2013) |
| Depth (Note) | 59 mm |
| Packing unit | 1 pc |
| Width (Note) | 135 mm |
| Height (Note) | 77 mm |
| Country of origin | DE (Germany) |
| Color (Output data) | green |
| Custom tariff number | 85364190 |
| Screw thread (General) | M3 |
| Connection name (General) | Input |
| Contact type (Input data) | 1 PDT |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| No. of channels (Output data) | 8 |
| Number of positions (General) | 12 |
| With components (Output data) | no |
| Mounting position (Output data) | any |
| Number of connections (General) | 1 |
| Degree of protection (Output data) | IP20 |
| (Connection data for connection 2) | 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) |
| Compatible components (Output data) | Miniature relays or miniature optocouplers |
| Maximum inrush current (Input data) | 8 A |
| Weight per Piece (excluding packing) | 208.660 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Maximum switching voltage (Input data) | 250 V AC/DC |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Type of protection (Ambient conditions) | Reverse polarity protection |
| Limiting continuous current (Input data) | 5 A |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Status display/channel (Ambient conditions) | Yellow LED |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Nominal input voltage UN (Ambient conditions) | 48 V DC (up to 60 V DC) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Operating voltage display (Ambient conditions) | Yellow LED |
| Screw thread (Connection data for connection 1) | M3 |
| Typical input current at UN (Ambient conditions) | 2 mA (Light indicator) |
| Protective circuit/component (Ambient conditions) | Polarity protection diode |
| Connection name (Connection data for connection 1) | Output |
| Stripping length (Connection data for connection 1) | 8 mm |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | Screw connection |
| Degree of pollution (Connection data for connection 2) | 2 |
| Number of positions (Connection data for connection 1) | 3 |
| Rated surge voltage (Connection data for connection 2) | 4 kV (Basic insulation between output contact current paths) |
| Overvoltage category (Connection data for connection 2) | III |
| Number of connections (Connection data for connection 1) | 24 |
| Standards/regulations (Connection data for connection 2) | DIN EN 50178 |
| Error detection (line break / short-circuit) (Input data) | no |
| Input voltage range in reference to UN (Ambient conditions) | 0.65 ... 1.1 |
| Rated insulation voltage (Connection data for connection 2) | 260 V AC |
| Conductor cross section AWG (Connection data for connection 1) | 24 ... 12 |
| Conductor cross section solid (Connection data for connection 1) | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible (Connection data for connection 1) | 0.2 mm² ... 2.5 mm² |
