UM-DELTA V/D/SI/BFI

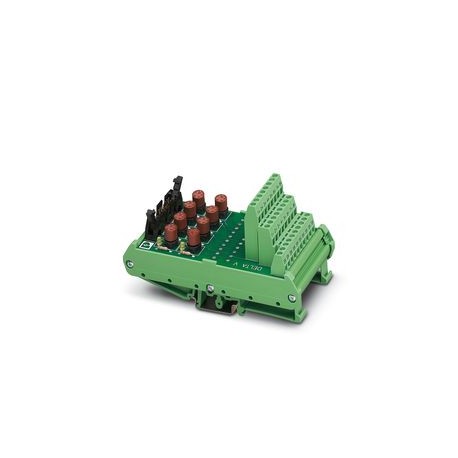

UM-DELTA V/D/SI/BFI 5603253 PHOENIX CONTACT Passive module
$0.00USD
3770 in stock
Key Specifications
:VE4001S2T2B3 Series 2
Depth:71 mm
Pitch:2.54 mm
Width:61 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VE4001S2T2B3 Series 2 | |
| Depth | 71 mm |
| Pitch | 2.54 mm |
| Width | 61 mm |
| Height | 126 mm |
| Product type | Interface module |
| Mounting type | DIN rail mounting |
| Product family | VARIOFACE |
| Article revision | 05 |
| Stripping length | 7 mm |
| Connection method | Screw connection |
| Mounting position | any |
| Suitable I/O card | VE4001S2T2B3 |
| Nominal voltage UN | 24 V DC |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Number of positions | 16 |
| Number of connections | 1 |
| Standards/regulations | IEC 60664 |
| Status display present | Yes, if the fuse fails |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Max. current carrying capacity per branch | 50 mA (in as-supplied state, with one 50 mAF fuse, max. 1 A permitted) |
Product Description
VARIOFACE Interconnect Module with Fuse and Fuse Fault Indication
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
