UM-BASIC-KIT-B72-L150-7035

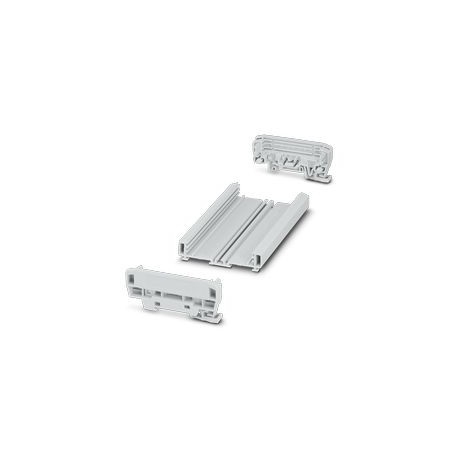

UM-BASIC-KIT-B72-L150-7035 1300348 PHOENIX CONTACT Profile housing (PVC), mounting type: Rail mounting, colo..
$6.52USD
1575 in stock
Key Specifications
Type:incl. 2 lateral elements
Color:light grey (7035)
Depth:39.45 mm
Width:153.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | incl. 2 lateral elements |
| Color | light grey (7035) |
| Depth | 39.45 mm |
| Width | 153.8 mm |
| Height | 92.3 mm |
| General | Please observe the assembly instructions available in the download area. |
| Dimensions | 72 mm x 150 mm (PCB dimensions) |
| Housing type | Profile housing |
| Product type | Stackable housing set |
| Mounting type | DIN rail mounting |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Housing series | UM-BASIC |
| Housing material | PVC |
| Mounting position | parallel to the DIN rail |
| Total PCB surface | 9030 mm² |
| Type of PCB mount | Insertion/securing with additional elements |
| Type of packaging | packed in cardboard |
| Insulating material | PVC |
| Outer packaging type | Carton |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Number of PCB holders | 3 |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Ambient temperature (operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Depth from top edge of DIN rail | 32.45 mm |
| Relative humidity (storage/transport) | 95 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
Product Description
Profile housing (PVC), mounting type: DIN rail mounting, color: light grey (7035), dimensions on the DIN rail: width: 153.8 mm, height: 92.3 mm, depth: 39.45 mm, incl. 2 lateral elements (PA), color:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
