UM-BASIC-KIT-B108-L60-7035

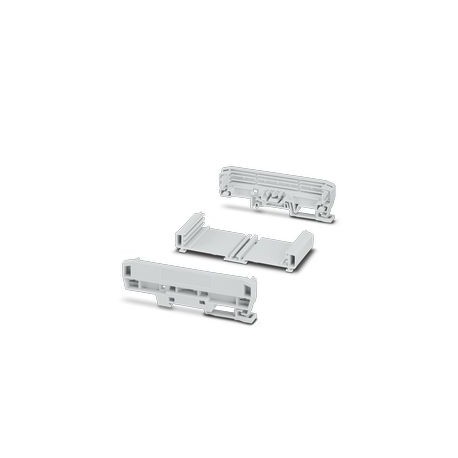

UM-BASIC-KIT-B108-L60-7035 1300352 PHOENIX CONTACT Profile box (PVC), mounting class: Rail mounting, DIN rai..
$5.27USD
1928 in stock
Key Specifications
Depth:39.45 mm
Width:63.8 mm
Colour:Luminous Grey (7035)
Height:127.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth | 39.45 mm |
| Width | 63.8 mm |
| Colour | Luminous Grey (7035) |
| Height | 127.8 mm |
| General | Please note the assembly instructions in the download area. |
| Execution | incl. 2 side elements |
| Dimensions | 108 mm x 60 mm (PCB Dimensions) |
| Product Type | Shell Set |
| Housing Series | UM-BASIC |
| Shell material | PVC |
| Type of housing | Profile box |
| Type of mounting | Rail mounting |
| Total PCB Surface | 4510 mm² |
| Type of packaging | Boxed Packaging |
| Outer packing type | Cardboard |
| Insulating material | PVC |
| Position for mounting | parallel to the DIN rail |
| Number of PCB Housings | 3 |
| Ambient Temperature (Service) | -15 °C ... 50 °C (depending on dissipation) |
| Ambient Temperature (Mounting) | -5 °C ... 50 °C |
| Printed Circuit Board Thickness | 1.4 mm ... 1.8 mm |
| Flammability class according to UL 94 | V0 |
| Printed Circuit Board Attachment Type | Insertion/fixation with additional elements |
| Ambient Temperature (Storage/Transport) | -40 °C ... 50 °C |
| Depth from the top edge of the DIN rail | 32.45 mm |
| Relative humidity of the air (storage/transport) | 95 % |
Product Description
Profile housing (PVC), mounting type: Rail mounting, colour: luminous grey (7035), DIN rail size: width: 63.8 mm, height: 127.8 mm, depth: 39.45 mm, incl. 2 side elements (PA), colour: luminous grey (
