UM 45-IB-DI/SIM8

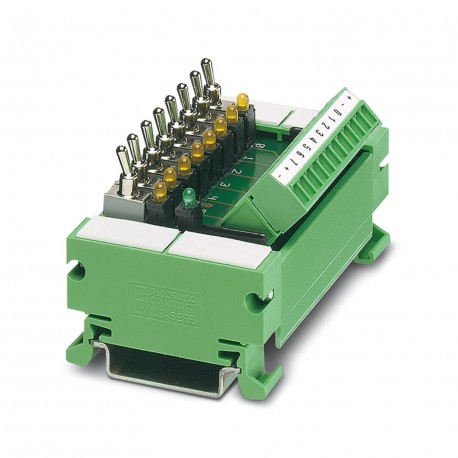

UM 45-IB-DI/SIM8 2962997 PHOENIX CONTACT Interface module
$0.00USD
3753 in stock
Key Specifications
:0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
Color:green (RAL 6021)
Depth:41 mm
Pitch:2.54 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | |
| Color | green (RAL 6021) |
| Depth | 41 mm |
| Pitch | 2.54 mm |
| Width | 75 mm |
| Height | 45 mm |
| Altitude | ≤ 2000 m |
| Insulation | Functional insulation |
| Certificate | UKCA-compliant |
| Product type | Interface module |
| Screw thread | M3 |
| Mounting type | DIN rail mounting |
| Operating mode | 100% operating factor |
| Product family | VARIOFACE |
| Status display | LED (yellow) |
| Pollution degree | 2 |
| Stripping length | 7 mm |
| Connection method | IDC/FLK pin strip |
| Mounting position | any |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Number of positions | 14 |
| Rated surge voltage | 0.5 kV (1.2/50 μs) |
| Current (per branch) | ≤ 0.05 A |
| Overvoltage category | II |
| Number of connections | 1 |
| Standards/regulations | EN IEC 60664-1 |
| Status display present | Yes |
| Operating voltage range | 19.2 V DC ... 26.4 V DC |
| Current (Voltage supply) | ≤ 0.4 A |
| Rated insulation voltage | 50 V |
| Operating voltage display | Green LED |
| Conductor cross section AWG | 28 ... 16 |
| Insertion/withdrawal cycles | > 50 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Degree of protection (Module) | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Connection in acc. with standard | IEC 60603-13 |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of protection (Installation location) | ≥ IP54 |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.08 mm² ... 0.5 mm² |
| Conductor cross section flexible (2 conductors with same cross section) | 0.08 mm² ... 0.75 mm² |
Product Description
VARIOFACE switch module, with COMBICON connector, for simulation, for 8 signals, for rail mounting NS 35
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
