UM 45-D25SUB/B/ZFKDS

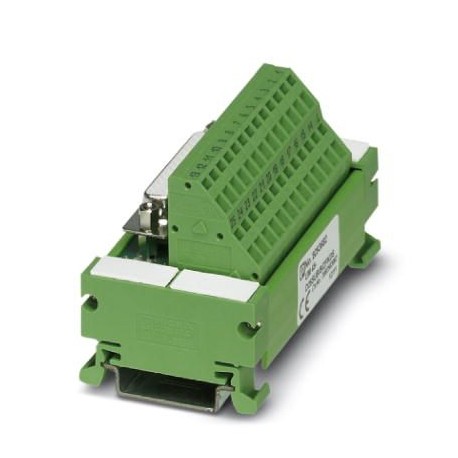

UM 45-D25SUB/B/ZFKDS 2293682 PHOENIX CONTACT Interface module
$0.00USD
4245 in stock
Key Specifications
GTIN:4017918120580
Orderkey:2293682
Catalog page:Page 308 (IF-2011)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918120580 |
| Orderkey | 2293682 |
| Catalog page | Page 308 (IF-2011) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 1.5 A (with even load on all branches) |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Spring-cage connection |
| Depth (Key Commercial Data) | 50 mm |
| Width (Key Commercial Data) | 90 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 45 mm |
| (Connection data for connection 2) | DIN EN 50178 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 115.000 g |
| Conductor cross section AWG (General) | 24 ... 14 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 2.5 mm² |
| Number of positions (Ambient conditions) | 25 |
| Degree of protection (Ambient conditions) | IP20 |
| Conductor cross section flexible (General) | 0.2 mm² ... 1.5 mm² |
| Connection in acc. with standard (General) | IEC / EN |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Insulation (Connection data for connection 2) | Functional insulation |
| Max. perm. operating voltage (Ambient conditions) | 25 V AC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | D-SUB socket strip |
| Max. perm. current (per branch) (Ambient conditions) | 2.5 A |
| Degree of pollution (Connection data for connection 2) | 2 |
| Number of positions (Connection data for connection 1) | 25 |
| Rated surge voltage (Connection data for connection 2) | 1.2 kV |
| Overvoltage category (Connection data for connection 2) | II |
| Number of connections (Connection data for connection 1) | 1 |
| Standards/regulations (Connection data for connection 2) | IEC 60664 |
| Rated insulation voltage (Connection data for connection 2) | 125 V |
Product Description
VARIOFACE module, with spring connection and subminiature female connector D, for mounting on NS 35/7.5, number of poles 25
