UM 45-2FLK14/S7

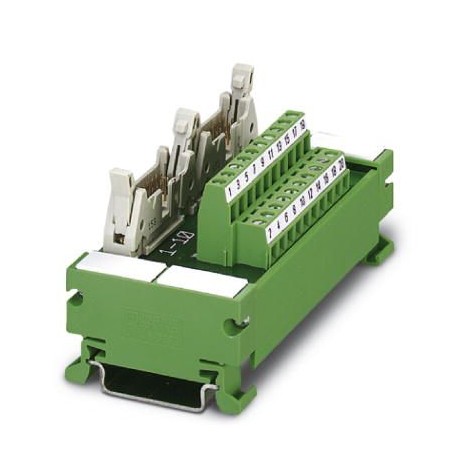

UM 45- 2FLK14/S7 2965143 PHOENIX CONTACT Passive module
$0.00USD
3181 in stock
Key Specifications
GTIN:4017918130930
Orderkey:2965143
Catalog page:Page 201 (IF-2007)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918130930 |
| Orderkey | 2965143 |
| Catalog page | Page 201 (IF-2007) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 60 V DC |
| Screw thread (General) | M3 |
| Connection name (General) | Field level |
| Note (Ambient conditions) | When coupling 40-pos. modules, the supplied marking strips can be placed over the factory terminal markings (1 ... 20).The “21, 23, 25, 27, 29, 31, 33, 35, 37, 39” marking strip can be placed over numbers “1, 3, 5, 7, 9, 11, 13, 15, 17, 19”.The “22, 24, 26, 28, 30, 32, 34, 36, 38, 40” marking strip can be placed over numbers “2, 4, 6, 8, 10, 12, 14, 16, 18, 20”.The “21-30 31-40” marking strip can be placed over PCB marking “1-10 11-20”. |
| Stripping length (General) | 6 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 50 mm |
| Width (Key Commercial Data) | 98 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 45 mm |
| (Connection data for connection 1) | DIN EN 50178 |
| Weight per Piece (excluding packing) | 104.000 g |
| Conductor cross section AWG (General) | 26 ... 14 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section solid (General) | 0.14 mm² ... 1.5 mm² |
| Degree of protection (Ambient conditions) | IP00 |
| Conductor cross section flexible (General) | 0.14 mm² ... 1.5 mm² |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Insulation (Connection data for connection 1) | Functional insulation |
| Max. perm. operating voltage (Ambient conditions) | < 50 V AC |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Max. perm. current (per branch) (Ambient conditions) | 1 A |
| Degree of pollution (Connection data for connection 1) | 2 |
| Rated surge voltage (Connection data for connection 1) | 0.6 kV |
| Overvoltage category (Connection data for connection 1) | II |
| Standards/regulations (Connection data for connection 1) | IEC 60664 |
| Rated insulation voltage (Connection data for connection 1) | 63 V |
Product Description
VARIOFACE interconnect module for Siemens SIMATIC® S7-300, for up to 16 channels with SIMATIC-specific® marking (1 - 20), screw connection, module width: 98 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
