UM-32 RM/RT-G24/21/PLC

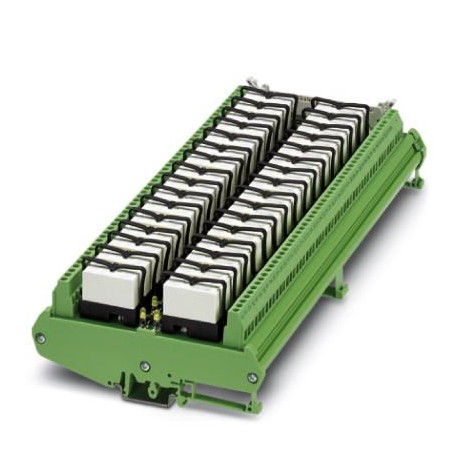

UM-32 RM/RT-G24/21/PLC 2968373 PHOENIX CONTACT Active module
$0.00USD
4892 in stock
Key Specifications
GTIN:4017918917517
Orderkey:2968373
Catalog page:Page 537 (C-5-2017)
Depth (Note):68 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918917517 |
| Orderkey | 2968373 |
| Catalog page | Page 537 (C-5-2017) |
| Depth (Note) | 68 mm |
| Packing unit | 1 pc |
| Width (Note) | 271 mm |
| (Input data) | 1250 VA (for 250 V AC) |
| Height (Note) | 123 mm |
| Pitch (General) | 2.54 mm |
| Country of origin | DE (Germany) |
| Color (Output data) | green |
| Custom tariff number | 85364190 |
| (Supported controller) | 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths) |
| Connection name (General) | Controller level |
| Contact type (Input data) | 1 PDT |
| Connection method (General) | IDC/FLK pin strip |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Operating mode (Output data) | 100% operating factor |
| Contact material (Input data) | AgNi |
| No. of channels (Output data) | 32 |
| Number of positions (General) | 50 |
| With components (Output data) | yes |
| Mounting position (Output data) | any |
| Number of connections (General) | 1 |
| Degree of protection (Output data) | IP00 |
| (Connection data for connection 3) | 6ES7 522-1BL01-0AB0 |
| Assembly instructions (Output data) | In rows with zero spacing |
| Compatible components (Output data) | Miniature switching relay, REL-MR-24DC/21HC |
| Min. switching current (Input data) | 10 mA |
| Weight per Piece (excluding packing) | 1,479.800 g |
| Mechanical service life (Output data) | 3x 107cycles |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Maximum switching voltage (Input data) | 250 V AC/DC |
| Minimum switching voltage (Input data) | 12 V AC/DC |
| Type of protection (Ambient conditions) | Free-wheeling diode |
| Limiting continuous current (Input data) | 5 A |
| Typical release time (Ambient conditions) | 10 ms |
| Degree of pollution (Supported controller) | 2 |
| Rated surge voltage (Supported controller) | 4 kV (Basic insulation between output contact current paths) |
| Typical response time (Ambient conditions) | 8 ms |
| Overvoltage category (Supported controller) | III |
| Status display/channel (Ambient conditions) | Yellow LED |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | DIN EN 50178 |
| Nominal input voltage UN (Ambient conditions) | 24 V DC |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Operating voltage display (Ambient conditions) | Green LED |
| Rated insulation voltage (Supported controller) | 260 V AC |
| Screw thread (Connection data for connection 1) | M3 |
| Screw thread (Connection data for connection 2) | M3 |
| Typical input current at UN (Ambient conditions) | 18 mA |
| Protective circuit/component (Ambient conditions) | Damping diode |
| Connection name (Connection data for connection 1) | Field level |
| Connection name (Connection data for connection 2) | Supply |
| Interrupting rating (ohmic load) max. (Input data) | 120 W (at 24 V DC) |
| Stripping length (Connection data for connection 1) | 8 mm |
| Stripping length (Connection data for connection 2) | 8 mm |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | Screw connection |
| Connection method (Connection data for connection 2) | Screw connection |
| Number of positions (Connection data for connection 2) | 3 |
| Corresponding control (Connection data for connection 3) | SIEMENS S7-1500 |
| Number of connections (Connection data for connection 1) | 96 |
| Number of connections (Connection data for connection 2) | 2 |
| Corresponding I/O card (Connection data for connection 3) | 6ES7 522-1BL00-0AB0 |
| Error detection (line break / short-circuit) (Input data) | no |
| Input voltage range in reference to UN (Ambient conditions) | 0.85 ... 1.1 |
| Conductor cross section AWG (Connection data for connection 1) | 24 ... 12 |
| Conductor cross section AWG (Connection data for connection 2) | 24 ... 12 |
| Conductor cross section solid (Connection data for connection 1) | 0.2 mm² ... 4 mm² |
| Conductor cross section solid (Connection data for connection 2) | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible (Connection data for connection 1) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible (Connection data for connection 2) | 0.2 mm² ... 2.5 mm² |
Product Description
Varioface output module, with 32 miniature relays, 1 switched contact, plugged in, for 24 V DC (incl. relay)
