ULSH102C5

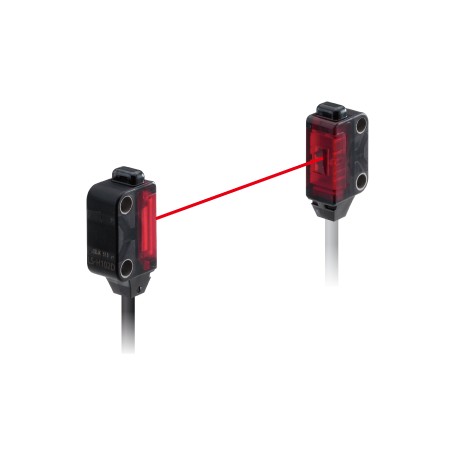

ULSH102C5 LS-H102-C5 PANASONIC Sensor head, thru-beam, side sensing type, range 1m, cable 5m
$0.00USD
4324 in stock
Key Specifications
Item:Specifications
Cable:0.09 mm22-core shielded cable, 2 m 6.562 ft long(Note：Cable cannot be extended.)
Details:Sensor heads(Thru-beam type)
Product:Amplifier-separated Type Digital Laser Sensor
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.09 mm22-core shielded cable, 2 m 6.562 ft long(Note：Cable cannot be extended.) |
| Details | Sensor heads(Thru-beam type) |
| Product | Amplifier-separated Type Digital Laser Sensor |
| Material | Enclosure: PBTCover: Acrylic |
| Accessory | MS-EXL2-2 (Mounting plate): 2 pcs. |
| Spot size | Approx. dia. 5 mm dia. 0.197 in or less (at a distance from the emitter of 1 m 3.281 ft) |
| Protection | IP67 (IEC) |
| Part Number | LS-H102-C5 |
| Product name | Amplifier-separated Type Digital Laser Sensor LS-500 |
| Product Number | LS-H102-C5 |
| Sensing object | Opaque, translucent, or transparent object(Note：Make sure to confirm detection with an actual sensor before use.) |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Shock resistance | 98 m / s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Sensing range:HYPR | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:U-LG | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Ambient temperature | -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit |
| Operation indicator | Orange LED (lights up when the amplifier output is ON) |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2in X, Y, and Z direction for 2 hours each. |
| Applicable amplifiers | LS-501(P), LS-501(P)-C2(Note：When using the thru-beam typeLS-H101□orLS-H102□, do not set the receiving light sensitivity (gctL) of the applicableLS-500series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.) |
| Emitting element:Type | Red semiconductor laser diode |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Regulatory compliance | EMC Directive, RoHS Directive |
| Sensing range:STD mode | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:FAST mode | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:H-SP mode | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:U-LG mode | 1m3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emitting element:Laser class | Class 1 [IEC / EN / JIS / GB / KS / FDA](Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Emitting element:Max. output | 2mW |
| Emitting element:Peak emission wavelength | 660 nm 0.026 mil |
Product Description
LS500. Sensor head, barrier, side detection, range 1m, cable 5m
