UKN2,5 BU

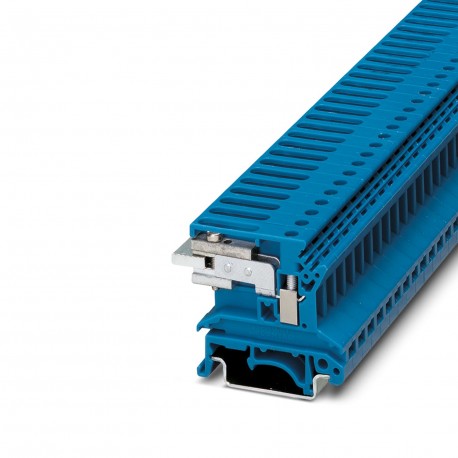

UKN 2,5 BU 3032004 PHOENIX CONTACT N disconnect terminal block
$0.00USD
3430 in stock
Key Specifications
:2.5 mm² / 0.7 kg
Note:Terminal point
Color:blue
Width:6.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 2.5 mm² / 0.7 kg | |
| Note | Terminal point |
| Color | blue |
| Width | 6.2 mm |
| Result | Test passed |
| General | Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. |
| Potentials | 1 |
| Revolutions | 135 |
| Product type | Installation terminal block |
| Screw thread | M3 |
| Mounting type | NS 35/7,5 |
| Number of rows | 1 |
| Rotation speed | 10 rpm |
| End cover width | 1.5 mm |
| Nominal current | 24 A |
| Nominal voltage | 400 V |
| Open side panel | Yes |
| Stripping length | 7 mm |
| Time of exposure | 30 s |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Tightening torque | 0.6 ... 0.8 Nm |
| Degree of pollution | 3 |
| Insulating material | PA |
| Rated surge voltage | 6 kV |
| Test force setpoint | 1 N |
| Maximum load current | 32 A (with 4 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Number of connections | 2 |
| Test voltage setpoint | 7.3 kV |
| DIN rail/fixing support | NS 32/NS 35 |
| Insulating material group | I |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section/weight | 0.2 mm² / 0.2 kg |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Short-time withstand current 4 mm² | 0.48 kA |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Flammability rating according to UL 94 | V2 |
| Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Static insulating material application in cold | -40 °C |
| Current carrying capacity of the neutral busbar | 140 A |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Product Description
N disconnect terminal block, Assembly instructions:For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer ter
