UKN 16 BU

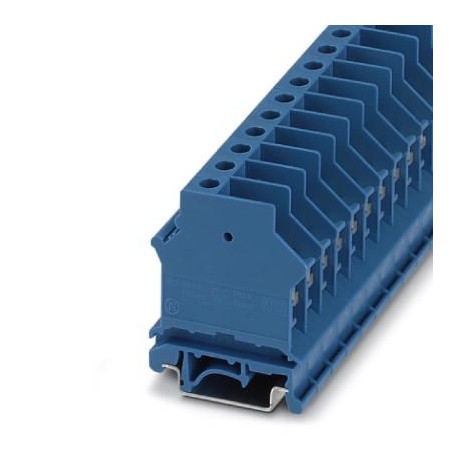

UKN 16 BU 3033090 PHOENIX CONTACT N disconnect terminal block
$0.00USD
3162 in stock
Key Specifications
GTIN:4017918092276
Orderkey:3033090
Packing unit:50 pc
Width (General):10.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918092276 |
| Orderkey | 3033090 |
| Packing unit | 50 pc |
| Width (General) | 10.2 mm |
| Length (General) | 43.6 mm |
| Country of origin | GR (Greece) |
| Note (Dimensions) | Terminal point |
| (Connection data) | IEC / EN |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | 16 mm² / 2.9 kg |
| Height NS 32 (General) | 59 mm |
| Height NS 35/15 (General) | 61.5 mm |
| Screw thread (Dimensions) | M4 |
| Height NS 35/7,5 (General) | 54 mm |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 11 mm |
| Connection method (Dimensions) | Special and hybrid connection |
| Setpoint (Key Commercial Data) | 5 N |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 23.420 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Bending test turns (Key Commercial Data) | 135 |
| Nominal current IN (Key Commercial Data) | 57 A (with 10 mm² conductor cross section) |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Short-time current (Key Commercial Data) | 1.92 kA |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Tensile test result (Key Commercial Data) | Test passed |
| Maximum load current (Key Commercial Data) | 76 A (with 16 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Tight fit on carrier (Key Commercial Data) | NS 32/NS 35 |
| Number of connections (Key Commercial Data) | 2 |
| Tightening torque max (Key Commercial Data) | 0.8 Nm |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Tightening torque, min (Key Commercial Data) | 0.6 Nm |
| Conductor cross section AWG max. (Dimensions) | 6 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Tractive force setpoint (Key Commercial Data) | 100 N |
| Conductor cross section solid max. (Dimensions) | 16 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Requirements, voltage drop (Key Commercial Data) | ≤ 6,4 mV |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 7.3 kV |
| Conductor cross section flexible max. (Dimensions) | 10 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| Disconnect slide, screw thread (Key Commercial Data) | M3 |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 100 °C |
| Nominal current IN(upper level) (Key Commercial Data) | 57 A (with 10 mm² conductor cross section) |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Connection in acc. with standard (Key Commercial Data) | IEC / EN |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Maximum load current (upper level) (Key Commercial Data) | 76 A (with 16 mm² conductor cross section) |
| Conductor cross section tensile test (Key Commercial Data) | 16 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.5 mm² |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 1.89 kV |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.5 mm² / 0.3 kg |
| Conductor cross section short circuit testing (Key Commercial Data) | 16 mm² |
| Static insulating material application in cold (Key Commercial Data) | -40 °C |
| Current carrying capacity of the neutral busbar (Key Commercial Data) | 140 A |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.5 mm² |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.5 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
