UKK 3-MSTB-5,08

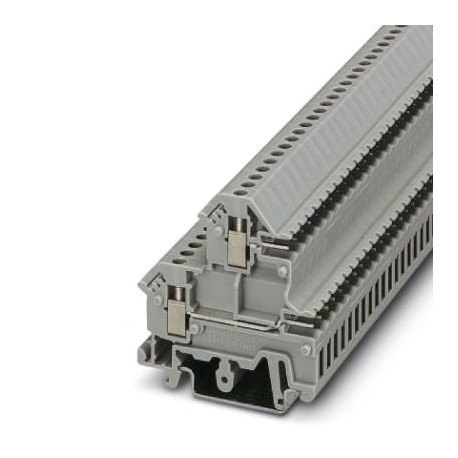

UKK 3-MSTB-5,08 2770888 PHOENIX CONTACT Double-level terminal block
$0.00USD
4076 in stock
Key Specifications
GTIN:4017918068110
Orderkey:2770888
Catalog page:Page 324 (CL-2005)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918068110 |
| Orderkey | 2770888 |
| Catalog page | Page 324 (CL-2005) |
| Packing unit | 50 pc |
| Country of origin | GR (Greece) |
| Custom tariff number | 85369010 |
| Screw thread (General) | M3 |
| Stripping length (General) | 8 mm |
| Color (Key Commercial Data) | gray |
| Connection method (General) | Screw connection |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection labeling (General) | 1st and 2nd level connection left |
| Tightening torque max (General) | 0.6 Nm |
| Tightening torque, min (General) | 0.5 Nm |
| Internal cylindrical gage (General) | A3 |
| Weight per Piece (excluding packing) | 8.180 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 2 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Nominal current IN (Key Commercial Data) | 10 A |
| Nominal voltage UN (Key Commercial Data) | 250 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 1 |
| Rated surge voltage (Key Commercial Data) | 4 kV |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Maximum load current (Key Commercial Data) | 12 A (with 4 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Number of connections (Key Commercial Data) | 4 |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Connection in acc. with standard (Connection data) | CSA |
| Flammability rating according to UL 94 (Connection data) | V2 |
| 2 conductors with same cross section, solid max. (General) | 1.5 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, stranded max. (General) | 1 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Terminal blocks for double-deck rail with COMBICON plug-in zone, rated current: 12 A, rated voltage: 250 V, cross-section: 0.2 mm² - 4 mm², AWG: 24 - 12, mounting type: NS 35/7.5, NS 35/15, NS 32, pit
