UKH50-3L

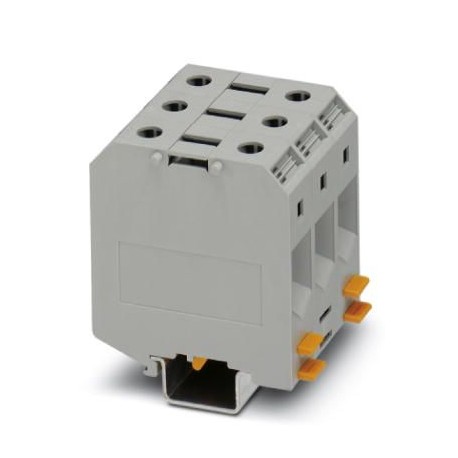

UKH 50-3L 3076634 PHOENIX CONTACT High-current terminal block, Connection method: Screw connection, Number o..
$0.00USD
3432 in stock
Key Specifications
Note:Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Color:gray
Width:60 mm
Length:70.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Color | gray |
| Width | 60 mm |
| Length | 70.5 mm |
| Height NS 32 | 81 mm |
| Screw thread | M6 |
| Height NS 35/15 | 83.5 mm |
| Open side panel | nein |
| Number of levels | 1 |
| Pollution degree | 3 |
| Stripping length | 24 mm |
| Connection method | Screw connection |
| Nominal current IN | 150 A |
| Nominal voltage UN | 1000 V |
| Insulating material | PA |
| Number of positions | 3 |
| Rated surge voltage | 8 kV |
| Maximum load current | 150 A (with 50 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 50 mm² |
| Number of connections | 6 |
| Tightening torque max | 8 Nm |
| Tightening torque, min | 6 Nm |
| Insulating material group | I |
| Internal cylindrical gage | B10 |
| Conductor cross section AWG max. | 2/0 |
| Conductor cross section AWG min. | 6 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid max. | 70 mm² |
| Conductor cross section solid min. | 16 mm² |
| Conductor cross section flexible max. | 70 mm² |
| Conductor cross section flexible min. | 25 mm² |
| Flammability rating according to UL 94 | V0 |
| Max. AWG conductor cross section, flexible | 2/0 |
| Min. AWG conductor cross section, flexible | 3 |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, solid min. | 10 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 10 mm² |
