UK3-RETURN BU

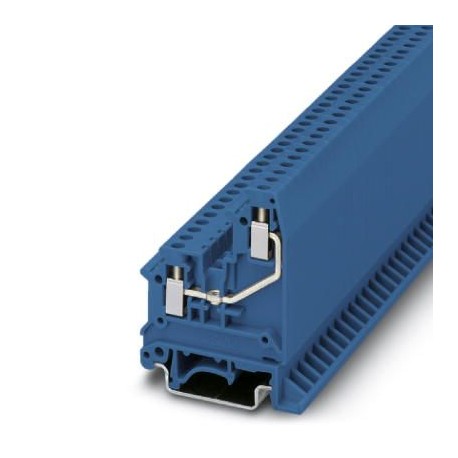

UK 3-RETURN BU 3002568 PHOENIX CONTACT Feed-through terminal block
$0.00USD
4965 in stock
Key Specifications
GTIN:4017918090333
Note:Made to Order (non-returnable)
Orderkey:3002568
Catalog page:Page 226 (CL-2005)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918090333 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3002568 |
| Catalog page | Page 226 (CL-2005) |
| Packing unit | 50 pc |
| Width (General) | 5.2 mm |
| Length (General) | 47.5 mm |
| Country of origin | PL (Poland) |
| (Connection data) | IEC / EN |
| Custom tariff number | 85369010 |
| Height NS 32 (General) | 63.5 mm |
| Minimum order quantity | 50 pc |
| Height NS 35/15 (General) | 66 mm |
| Screw thread (Dimensions) | M3 |
| Height NS 35/7,5 (General) | 58.5 mm |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 8 mm |
| Connection method (Dimensions) | Screw connection |
| Potentials (Key Commercial Data) | 1 |
| Tightening torque max (Dimensions) | 0.8 Nm |
| Tightening torque, min (Dimensions) | 0.6 Nm |
| Weight per Piece (excluding packing) | 9.110 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 2 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Nominal current IN (Key Commercial Data) | 32 A |
| Nominal voltage UN (Key Commercial Data) | 500 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 32 A (with 4 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 12 |
| Conductor cross section AWG min. (Dimensions) | 30 |
| Connection in acc. with standard (Dimensions) | UL |
| Conductor cross section solid max. (Dimensions) | 4 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 24 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Cross section with insertion bridge, solid max. (Dimensions) | 4 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.2 mm² |
| Cross section with insertion bridge, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
