UK1C/G4-0ESY

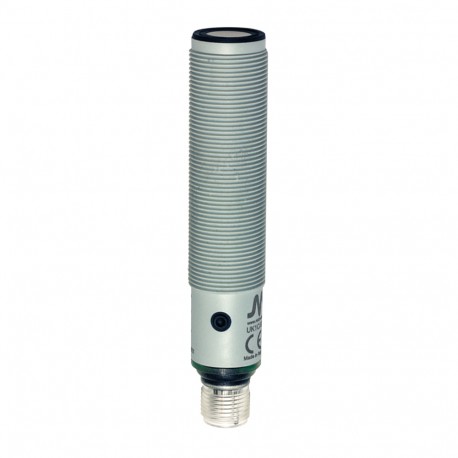

UK1C/G4-0ESY MICRO DETECTORS Ultrasonic sensor M18 analogic 4-20 mA+ NPN NO/NC 100-900 mm plug M12 with teac..
$0.00USD
3021 in stock
Key Specifications
Weight:70g
Beam angle:10° ± 2°
Dimensions:M18 x 1 / L = of 91.6 mm
Hysteresis:1%
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 70g |
| Beam angle | 10° ± 2° |
| Dimensions | M18 x 1 / L = of 91.6 mm |
| Hysteresis | 1% |
| resolution | ≤3mm |
| Connections | cable 2m |
| Output type | 1xNPN+4...20mA |
| Load current | 100mA |
| Exit function | NA/NC |
| Nominal range | 900mm |
| Repeatability | 0,50% |
| Thermal drift | ±2% |
| body material | PBT body plastic |
| Certifications | CEcULus |
| LED indicators | green: eco - yellow: output |
| Supply voltage | 10 - 30vdc |
| Leakage current | 10µA @ 30vdc |
| Linearity Error | 1% |
| Tightening torque | 1Nm |
| Shock and vibration | IEC EN60947-5-2 / 7.4 |
| Storage temperature | - 35°C...+ 80° C without freezing |
| Switching frequency | 4Hz |
| Accessories included | 2 washers M18x1, 2 nuts Ø 18 |
| Degree of protection | IP67 |
| Thermal compensation | Yes |
| Operating temperature | - 20°C...+ 70°C |
| Sensitivity adjustment | push-button auto-tune |
| Maximum residual ripple | 5% |
| Protection short circuit | yes |
| Delay to the availability | ≤300 µs, |
| Minimum range (dead zone) | 80mm |
| Voltage drop to the output | 2,2 Vmax. @ IL=100 mA |
| Frequency of the transducer | 300kHz |
| Protection polarity reversal | yes |
| Electromagnetic compatibility | IEC 60947-5-2 |
| Absorption of current in the vacuum | ≤50mA |
| Protection against impulse overvoltage | yes |
Product Description
UK1C/G4-0ESY Ultrasonic sensor M18 analog. 4-20 mA+ NPN NO/NC 100-900 mm conn. M12 with teach-in button, plastic, cULus
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
