UK1A/G7-2ESY

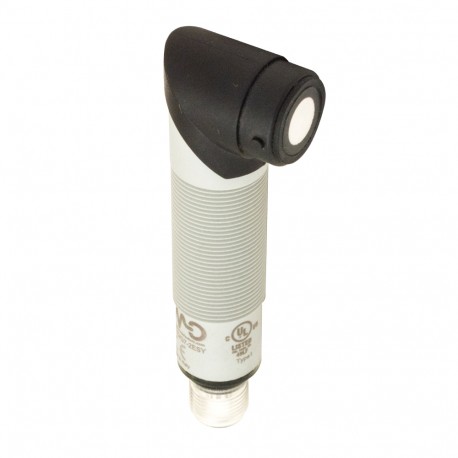

UK1A/G7-2ESY MICRO DETECTORS Ultrasonic sensor M18 analogic 4-20 mA 50-400 mm plug M12 with teach-in button,..
$0.00USD
4299 in stock
Key Specifications
Weight:75g
Approvals:CEcULus
Beam angle:10° ± 2°
Dimensions:M18 x 1 / L = 88,3mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 75g |
| Approvals | CEcULus |
| Beam angle | 10° ± 2° |
| Dimensions | M18 x 1 / L = 88,3mm |
| Hysteresis | 1% |
| Resolution | ≤3mm |
| Connections | 2 mt cable |
| Output type | 1xPNP+0…10V |
| Load current | 100mA |
| Response time | 500ms |
| LED indicators | green: echo - yellow: output |
| Leakage current | 10μA @ 30Vcc |
| Linearity error | 1% |
| Output Function | NO/NC |
| Repeat Accuracy | 0,50% |
| Housing Material | PBT housing |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 1Nm |
| Max ripple content | 5% |
| Output voltage drop | 2,2Vmax. @ IL=100 mA |
| Storage temperature | - 35°C…+ 80° C without freeze |
| Switching frequency | 10Hz |
| Thermal drift of Sr | ±2% |
| Degree of protection | IP67 |
| Supplied Accessories | 2 nuts M18x1, 2 washers Ø 18 |
| Transducer Frequency | 300kHz |
| thermal compensation | Yes |
| Operating temperature | - 20°C…+ 70°C |
| Shocks and vibrations | IEC EN60947-5-2 / 7.4 |
| No-Load supply current | ≤50mA |
| Sensitivity adjustment | Teach-in button |
| Minimum load resistence | 3kΩ |
| Nominal sensing distance | 400mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤300ms |
| Impulsive Overvoltage Protection | Yes |
| Minimum sensing distance (blind zone) | 50mm |
Product Description
UK1A/G7-2ESY Ultrasonic sensor M18 analog. 0-10 V+ PNP NO/NC 50-400 mm conn. M12 with teach-in button, plastic, 90°, cULus
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
