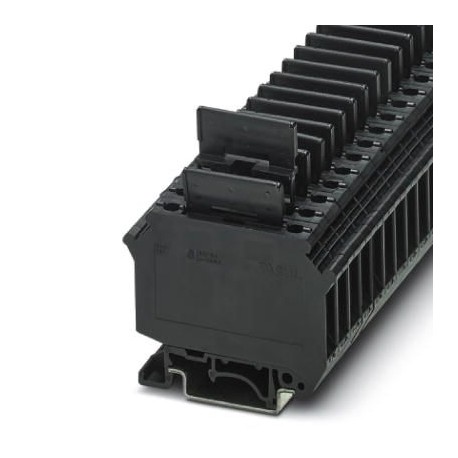

UK-SI 3118012 PHOENIX CONTACT Fuse modular terminal block
$9.70USD
1060 in stock
Key Specifications
GTIN:4017918092856
Orderkey:3118012
Catalog page:Page 460 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918092856 |
| Orderkey | 3118012 |
| Catalog page | Page 460 (C-1-2017) |
| Packing unit | 50 pc |
| Width (General) | 8.2 mm |
| Length (General) | 59.5 mm |
| Country of origin | GR (Greece) |
| (Connection data) | IEC 60947-7-3 |
| Custom tariff number | 85369095 |
| (Key Commercial Data) | 400 V (As a disconnect terminal block) |
| Height NS 32 (General) | 63 mm |
| Height NS 35/15 (General) | 65.5 mm |
| Screw thread (Dimensions) | M3 |
| Fuse (Key Commercial Data) | G / 5 x 20 / 5 x 25 |
| Height NS 35/7,5 (General) | 58 mm |
| Color (Key Commercial Data) | black |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 9 mm |
| Connection method (Dimensions) | Screw connection |
| ASD level (Key Commercial Data) | 1.857 (m/s2)2/Hz |
| Fuse type (Key Commercial Data) | Glass / ceramics / ... |
| Shock form (Key Commercial Data) | Half-sine |
| Acceleration (Key Commercial Data) | 5 g |
| Tightening torque max (Dimensions) | 0.8 Nm |
| Test spectrum (Key Commercial Data) | Service life test category 1, class B, body mounted |
| Tightening torque, min (Dimensions) | 0.6 Nm |
| Shock duration (Key Commercial Data) | 30 ms |
| Test frequency (Key Commercial Data) | f1= 5 Hz to f2= 150 Hz |
| Weight per Piece (excluding packing) | 17.790 g |
| Open side panel (Key Commercial Data) | No |
| Test directions (Key Commercial Data) | X-, Y- and Z-axis (pos. and neg.) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Internal cylindrical gage (Dimensions) | A4 |
| Number of levels (Key Commercial Data) | 1 |
| Finger protection (Key Commercial Data) | guaranteed |
| Shock test result (Key Commercial Data) | Test passed |
| Nominal current IN (Key Commercial Data) | 6.3 A |
| Nominal voltage UN (Key Commercial Data) | 400 V (As a fuse terminal block) |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 4 kV |
| Maximum load current (Key Commercial Data) | 6.3 A (is determined by the fuse used) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Test duration per axis (Key Commercial Data) | 5 h |
| Conductor cross section AWG max. (Dimensions) | 12 |
| Conductor cross section AWG min. (Dimensions) | 24 |
| Rated operating voltage (Key Commercial Data) | 250 V |
| Conductor cross section solid max. (Dimensions) | 4 mm² |
| Conductor cross section solid min. (Dimensions) | 0.2 mm² |
| Insulating material group (Key Commercial Data) | I |
| Back of the hand protection (Key Commercial Data) | guaranteed |
| Conductor cross section flexible max. (Dimensions) | 4 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Number of shocks per direction (Key Commercial Data) | 3 |
| Test specification, shock test (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-3 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Shock protection test specification (Key Commercial Data) | DIN EN 50274 (VDE 0660-514):2002-11 |
| Cross section with insertion bridge, solid max. (Dimensions) | 4 mm² |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| 2 conductors with same cross section, solid max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.2 mm² |
| Oscillation, broadband noise test result (Key Commercial Data) | Test passed |
| Cross section with insertion bridge, stranded max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.2 mm² |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.02 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Test specification, oscillation, broadband noise (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.25 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.25 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Fuse terminal for fuse cartridge G 5 x 20 and 5 x 25, cross-section: 0.2 - 4 mm², width: 8.2 mm, colour: Black
