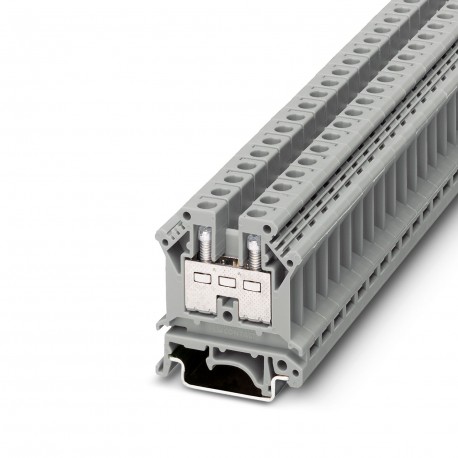

UK 10 3005015 PHOENIX CONTACT Feed-through terminal block
$0.00USD
3905 in stock
Key Specifications
GTIN:4017918090982
Orderkey:3005015
Packing unit:50 pc
Width (General):8.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918090982 |
| Orderkey | 3005015 |
| Packing unit | 50 pc |
| Width (General) | 8.2 mm |
| Length (General) | 42.5 mm |
| Country of origin | DE (Germany) |
| (Connection data) | IEC / EN |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | 10 mm² / 2 kg |
| Height NS 32 (General) | 52 mm |
| End cover width (General) | 1.8 mm |
| Height NS 35/15 (General) | 54.5 mm |
| Screw thread (Dimensions) | M4 |
| Height NS 35/7,5 (General) | 47 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 10 mm |
| Connection method (Dimensions) | Screw connection |
| Setpoint (Key Commercial Data) | 5 N |
| Potentials (Key Commercial Data) | 1 |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 14.960 g |
| Open side panel (Key Commercial Data) | Yes |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Internal cylindrical gage (Dimensions) | A5 |
| Number of levels (Key Commercial Data) | 1 |
| Finger protection (Key Commercial Data) | guaranteed |
| Bending test turns (Key Commercial Data) | 135 |
| Nominal current IN (Key Commercial Data) | 57 A |
| Nominal voltage UN (Key Commercial Data) | 800 V |
| Short-time current (Key Commercial Data) | 1.2 kA |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Tensile test result (Key Commercial Data) | Test passed |
| Overvoltage category (Key Commercial Data) | III |
| Tight fit on carrier (Key Commercial Data) | NS 32/NS 35 |
| Number of connections (Key Commercial Data) | 2 |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 26 |
| Connection in acc. with standard (Dimensions) | UL |
| Tractive force setpoint (Key Commercial Data) | 90 N |
| Conductor cross section solid max. (Dimensions) | 10 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Back of the hand protection (Key Commercial Data) | guaranteed |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 9.8 kV |
| Conductor cross section flexible max. (Dimensions) | 6 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Max. AWG conductor cross section, flexible (Dimensions) | 10 |
| Min. AWG conductor cross section, flexible (Dimensions) | 20 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Shock protection test specification (Key Commercial Data) | IEC 60529:2001-02 |
| Conductor cross section tensile test (Key Commercial Data) | 10 mm² |
| Cross section with insertion bridge, solid max. (Dimensions) | 6 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| 2 conductors with same cross section, solid max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.5 mm² |
| Cross section with insertion bridge, stranded max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.5 mm² |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 2 kV |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.5 mm² / 0.3 kg |
| Conductor cross section short circuit testing (Key Commercial Data) | 10 mm² |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.5 mm² |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Feed-through terminal, nominal voltage: 800 V, nominal current: 57 A, number of connections: 2, connection type: Screw connection, cross-section: 0.5 mm² - 10 mm², mounting class: NS 35/7.5, NS 35/15,
