UIK 16-PE/N

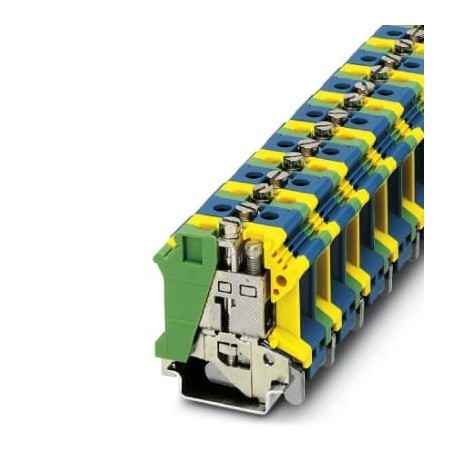

UIK 16-PE/N 3006234 PHOENIX CONTACT Installation ground terminal block
$0.00USD
4547 in stock
Key Specifications
GTIN:4017918091453
Orderkey:3006234
Catalog page:Page 229 (CL-2005)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918091453 |
| Orderkey | 3006234 |
| Catalog page | Page 229 (CL-2005) |
| Packing unit | 10 pc |
| Width (General) | 24 mm |
| Length (General) | 42.5 mm |
| Country of origin | DE (Germany) |
| Note (Dimensions) | Please observe the current carrying capacity of the DIN rails. |
| Custom tariff number | 85369010 |
| Height NS 32 (General) | 52 mm |
| Minimum order quantity | 10 pc |
| Height NS 35/15 (General) | 54.5 mm |
| Screw thread (Dimensions) | M4 |
| Height NS 35/7,5 (General) | 47 mm |
| Color (Key Commercial Data) | green-yellow-blue |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 11 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 62.540 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| REACh SVHC (Standards and Regulations) | 4-Nonylphenol, ethoxylated |
| Nominal current IN (Key Commercial Data) | 101 A |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Maximum load current (Key Commercial Data) | 101 A (with 25 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 4 |
| Conductor cross section AWG min. (Dimensions) | 12 |
| Terminal block mounting (Key Commercial Data) | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
| Conductor cross section solid max. (Dimensions) | 25 mm² |
| Conductor cross section solid min. (Dimensions) | 2.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 16 mm² |
| Conductor cross section flexible min. (Dimensions) | 4 mm² |
| Connection in acc. with standard (Connection data) | IEC / EN |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Connection in acc. with standard (Key Commercial Data) | IEC / EN |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 1.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 1.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 130 °C |
