UHZ/CN-0A

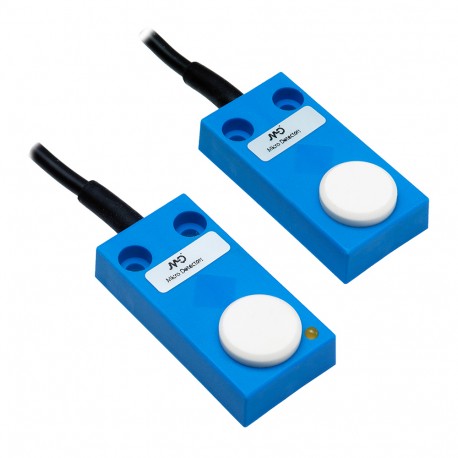

UHZ/CN-0A MICRO DETECTORS Ultrasonic sensor cubic E +R sensing distance 300 mm NPN NC cable 2m 90°
$0.00USD
4141 in stock
Key Specifications
Weight:100g
Approvals:CE
Beam angle:± 8°
Dimensions:24 x 30 x 15mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 100g |
| Approvals | CE |
| Beam angle | ± 8° |
| Dimensions | 24 x 30 x 15mm |
| Connections | 2m PVC cable |
| Output type | NPN |
| Load current | 40mA |
| Response time | 1ms |
| LED indicators | Yellow LED (output active or incorrect alignment) |
| Leakage current | < 10µA |
| Output Function | NC |
| Housing Material | PBTP |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 19 - 30Vdc |
| Max ripple content | < 10% |
| Output voltage drop | < 2,5V |
| Storage temperature | - 25°C…+ 75° C (without freeze) |
| Switching frequency | 500Hz |
| Active Head Material | ceramics |
| Degree of protection | IP67 (EN60529) |
| Transducer Frequency | 300KHz |
| thermal compensation | Yes |
| Operating temperature | - 15°C…+ 60°C |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 |
| Sensitivity adjustment | No |
| Nominal sensing distance | 300mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | < 200ms |
| Impulsive Overvoltage Protection | Yes |
| Minimum sensing distance (blind zone) | 0mm |
Product Description
UHZ/CN-0A Ultrasonic sensor cubic E +R port. 300 mm NPN NC cable 2m 90°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
