UHV240-KH/AS

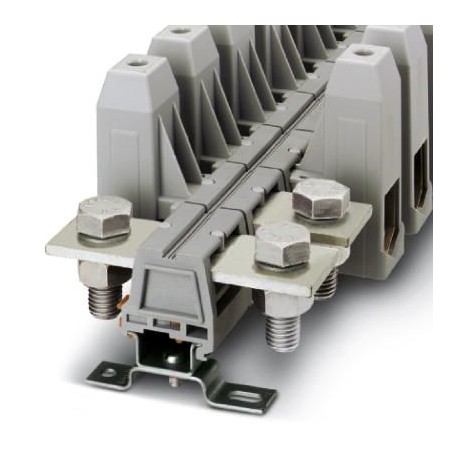

UHV240-KH/AS 2130143 PHOENIX CONTACT High Current Connectors
$0.00USD
3809 in stock
Key Specifications
GTIN:4017918052928
Orderkey:2130143
Catalog page:Page 555 (C-1-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918052928 |
| Orderkey | 2130143 |
| Catalog page | Page 555 (C-1-2017) |
| Packing unit | 5 pc |
| Width (General) | 53 mm |
| Length (General) | 126.5 mm |
| Country of origin | IN (India) |
| Note (Dimensions) | 2-conductor connection only on terminal sleeve side |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| Power rail (Dimensions) | 40 mm x 5 mm |
| Height NS 35/15 (General) | 105.5 mm |
| Screw thread (Dimensions) | M10 |
| Bolt diameter (Dimensions) | 16 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 34 mm |
| Connection method (Dimensions) | Screw connection |
| Hole diameter, min. (Dimensions) | 17 mm |
| Tightening torque max (Dimensions) | 30 Nm |
| Tightening torque, min (Dimensions) | 25 Nm |
| Weight per Piece (excluding packing) | 549.350 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 415 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA-F |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Maximum load current (Key Commercial Data) | 415 A (with 240 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 240 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Conductor cross section AWG max. (Dimensions) | 500 kcmil |
| Conductor cross section AWG min. (Dimensions) | 2/0 |
| Conductor cross section solid max. (Dimensions) | 240 mm² |
| Conductor cross section solid min. (Dimensions) | 70 mm² |
| Insulating material group (Key Commercial Data) | II |
| Conductor cross section flexible max. (Dimensions) | 240 mm² |
| Conductor cross section flexible min. (Dimensions) | 70 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Cable lug connection according to standard (Dimensions) | DIN 46235 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Max. cross section for cable lug connection (Dimensions) | 240 mm² |
| Min. cross section for cable lug connection (Dimensions) | 50 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 95 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 35 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 95 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 50 mm² |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 13.78 W |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 185 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 70 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 180 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 70 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 50 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 35 mm² |
Product Description
Universal terminal block with mixed connection, cross-section: 70 - 240 mm², width: 53 mm, colour: Grey
