In Stock Hot Product
UHV 50 PEDESTAL

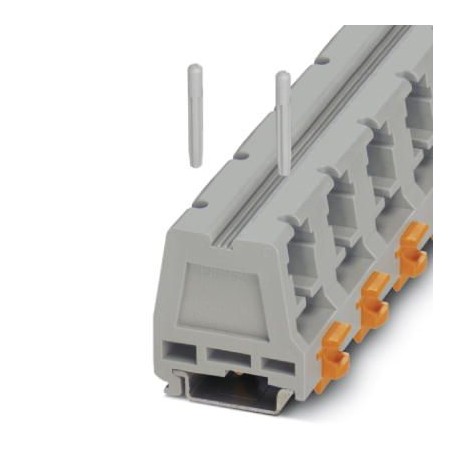

UHV 50 PEDESTAL 3213218 PHOENIX CONTACT Support bracket
$0.00USD
4766 in stock
Key Specifications
GTIN:4046356550710
Note:Made to Order (non-returnable)
Orderkey:3213218
Packing unit:25 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356550710 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3213218 |
| Packing unit | 25 pc |
| Width (General) | 31.22 mm |
| Height (General) | 45.1 mm |
| Length (General) | 47.81 mm |
| Country of origin | IN (India) |
| Custom tariff number | 85389099 |
| Minimum order quantity | 25 pc |
| Height NS 35/15 (General) | 53 mm |
| Height NS 35/7,5 (General) | 45.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Key Commercial Data) | PA |
| Weight per Piece (excluding packing) | 37.800 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
Product Description
Stand, To hold the busbar, length: 47.81 mm, width: 31.22 mm, height: 45.1 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
