UHV 25-AS/AS

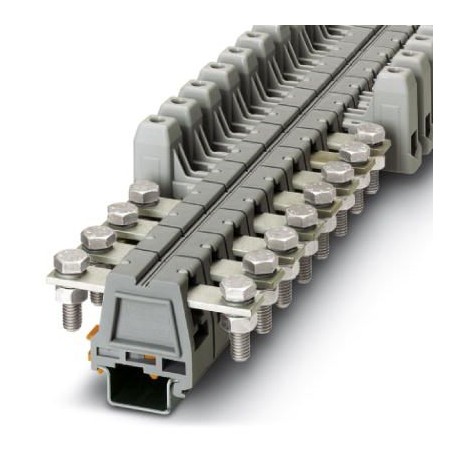

UHV 25-AS/AS 2130004 PHOENIX CONTACT High Current Connectors
$0.00USD
4176 in stock
Key Specifications
GTIN:4017918052782
Orderkey:2130004
Catalog page:Page 554 (C-1-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918052782 |
| Orderkey | 2130004 |
| Catalog page | Page 554 (C-1-2017) |
| Packing unit | 10 pc |
| Width (General) | 26 mm |
| Length (General) | 88 mm |
| Country of origin | IN (India) |
| (Connection data) | IEC 60947-7-1 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Power rail (Dimensions) | 15 mm x 3 mm |
| Height NS 35/15 (General) | 53 mm |
| Screw thread (Dimensions) | M8 |
| Bolt diameter (Dimensions) | 8 mm |
| Color (Key Commercial Data) | gray |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection method (Dimensions) | Bolt connection |
| Setpoint (Key Commercial Data) | 10 N |
| Hole diameter, min. (Dimensions) | 8.4 mm |
| Tightening torque max (Dimensions) | 20 Nm |
| Tightening torque, min (Dimensions) | 15 Nm |
| Weight per Piece (excluding packing) | 101.320 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 101 A |
| Nominal voltage UN (Key Commercial Data) | 1000 V |
| Short-time current (Key Commercial Data) | 3 kA |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA-F |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Maximum load current (Key Commercial Data) | 101 A (with 25 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Tight fit on carrier (Key Commercial Data) | NS 32/NS 35 |
| Nominal cross section (Key Commercial Data) | 25 mm² |
| Number of connections (Key Commercial Data) | 2 |
| Result of thermal test (Key Commercial Data) | Test passed |
| Conductor cross section solid max. (Dimensions) | 25 mm² |
| Conductor cross section solid min. (Dimensions) | 6 mm² |
| Insulating material group (Key Commercial Data) | II |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 9.8 kV |
| Conductor cross section flexible max. (Dimensions) | 25 mm² |
| Conductor cross section flexible min. (Dimensions) | 6 mm² |
| Connection in acc. with standard (Connection data) | CSA |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Cable lug connection according to standard (Dimensions) | DIN 46235 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Max. cross section for cable lug connection (Dimensions) | 25 mm² |
| Min. cross section for cable lug connection (Dimensions) | 16 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 2.2 kV |
| Conductor cross section short circuit testing (Key Commercial Data) | 25 mm² |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 3.26 W |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 6 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 120 °C |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
High-intensity connector with stud connection, cross-section: 6 - 25 mm², AWG: 10 - 4, width: 26 mm, colour: grey
