UHLT1001A

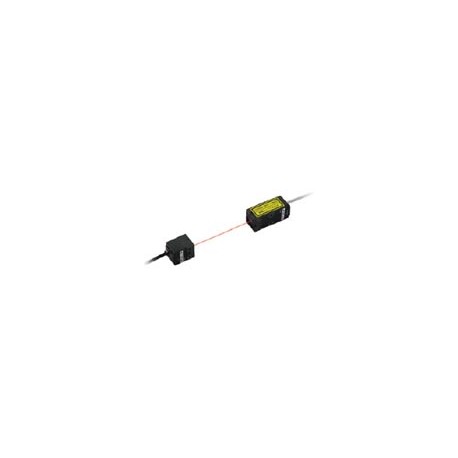

UHLT1001A HLT1001A HL-T1001A PANASONIC HL-T1 sensor heads, 1mm type
$0.00USD
3030 in stock
Key Specifications
Item:Specifications
Type:Beam diameter dia.1 mm dia.0.039 in type
Cable:0.09mm23-core shielded cable with connector, 0.5 m1.640 ftlong
Weight:Emitter: 15 g approx.Receiver: 15 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Beam diameter dia.1 mm dia.0.039 in type |
| Cable | 0.09mm23-core shielded cable with connector, 0.5 m1.640 ftlong |
| Weight | Emitter: 15 g approx.Receiver: 15 g approx. |
| Details | Sensor head (Beam diameter dia.1 mm dia.0.039 in type) |
| Product | Ultra-compact Laser Collimated Beam Sensor |
| Material | Enclosure: PolyetherimideCase cover: PolycarbonateFront cover: Glass |
| Accessory | MS-HLT1-1(Sensor head mounting bracket): One set of two brackets for both the emitter and the receiverCN-HLT1-1(Sensor head to controller connection cable): 1 cableLaser beam alignment sticker: 2 pcs.Label set (FDA regulations conformed type only): 1 set |
| Part Number | HL-T1001A |
| Product name | Ultra-compact Laser Collimated Beam Sensor HL-T1 |
| Sensing range | ■■【In the case of(0 to 500 mm 0to 19.685 in)】■■Sensing width:ø1 mmø0.039 inMin. sensing object:ø8 micro mø0.315 milopaque objectRepeatability (During the state in which light is half blocked):4 micro m0.157 mil(Note：In case of an average sampling rate of 64 times.)Linear output resolution:4 micro m0.157 mil(Note) In case of an average sampling rate of 64 times.(Note)Value calculated with the linear output allowance factor (plus or minus 3 sigma) when connected to the controller included in the calculation of the detection width.(Note：This value was obtained by converting the range of linear output fluctuation (plus or minus 3 sigma) into a sensing width, assuming that the smallest sensing object blocks the beam at the approximate center of the beam diameter of ø1 mmø0.039 in.)■■【In the case of (500 to 2,000 mm19.685 to 78.74 in)】■■Sensing width:ø1 to ø2.5 mmø0.039 to ø0.098 inMin. sensing object:ø50 micro mø1.969 milopaque objectRepeatability (During the state in which light is half blocked): -Linear output resolution: -- |
| Product Number | HL-T1001A |
| Cable extension | Extension up to total 10 m32.808 ftis possible, with the optional cable. |
| Pollution degree | 3 (industrial environment) |
| Emission indicator | Green LED (lights up during laser emission) |
| Applicable controller | HL-AC1, HL-AC1P |
| Insulation resistance | 100 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Interference prevention function | Two units of sensors can be mounted close together. (When the controller interference prevention function is used) |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Environmental resistance : Shock resistance | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Environmental resistance : Ambient illuminance | Incandescent light: 10,000 liter x or less at the light-receiving face |
| Environmental resistance : Ambient temperature | 0 to +50 ℃+32 to +122 ℉(No dew condensation allowed), Storage: -25 to +65 ℃-13 to +149 ℉ |
| Environmental resistance : Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Emitting element : FDA regulations conforming type | Red semiconductor laser Class II (FDA)(modulated, max. output: 0.2 mW, peak emission wavelength: 650 nm0.026 mil)(IEC / JIS: Class 1) |
| Emitting element : IEC / JIS standards conforming type | Red semiconductor laser Class 1 (IEC / JIS)(modulated, max. output: 0.2 mW, peak emission wavelength: 650 nm0.026 mil) |
