UHLG105AC5

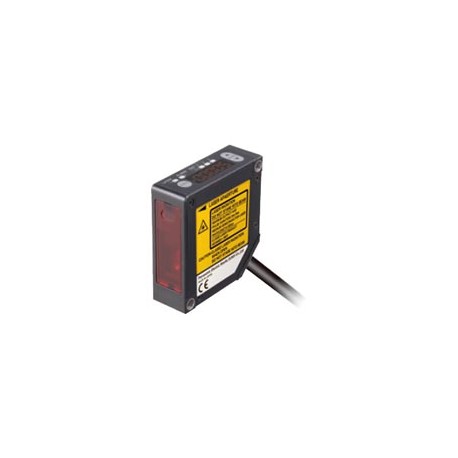

UHLG105AC5 HL-G105-A-C5 PANASONIC Compact Laser Displacement Sensor, Standard type, 50 mm, cable 5 m
$0.00USD
3667 in stock
Key Specifications
Item:Specifications
Type:Standard type
Cable:0.1mm210-core cabtyre cable, 5 m16.404 ftlong
Remark:Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic and analog measurement values.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Type | Standard type |
| Cable | 0.1mm210-core cabtyre cable, 5 m16.404 ftlong |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃+68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic and analog measurement values. |
| Weight | Net weight: 70 g approx. (not including cable), 320 g approx. (including cable)Gross weight: 380 g approx. |
| Details | Sensor head (Standard type) |
| Product | Compact Laser Displacement Sensor |
| Material | Enclosure: PBTFront cover: AcrylicCable: PVC |
| Accessory | Warning label: 1 set |
| Linearity | ± 0.1 % F.S. |
| Resolution | 1.5 μm0.059 mil |
| Multi input | Zero set, zero set off, reset, memory switching, teaching, saving, and laser control according to the input time.In case NPN output is selected, Function varies according to the time 0 V is connected NPN.In case PNP output is selected, Function varies according to the time external power + is connected. |
| Part Number | HL-G105-A-C5 |
| Light source | Red semiconductor laser, Class 2 (IEC / EN / JIS / GB / KS / FDA (Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.Max. output: 1 mW (Peak emission wavelength: 655 nm0.026 mil) |
| Product name | Compact Laser Displacement Sensor HL-G1 |
| Timing input | NPN output operates when 0V is connected and NPN is set. (It depends on the setting.)PNP output operates when external power + is connected and PNP is set. (It depends on the setting.) |
| Beam diameter | 0.5 × 0.1 mm0.020 x 0.039 in(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2(13.5 %) of the center light intensity. Ifthere is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than thesensing point itself, then the results may be affected. |
| Sampling rate | 200 μs, 500 μs, 1 ms, 2 ms |
| Product Number | HL-G105-A-C5 |
| Supply voltage | 24 V DC ± 10 % including ripple 0.5 V (P-P) |
| Digital display | Red LED 5 digit display |
| Measuring range | ± 10 mm± 0.394 in |
| Indicator : Alarm | Orange LED lights up when this product cannot measure because of insuffienct or excessive light intensity. |
| Receiving element | CMOS image sensor |
| Operating altitude | 2,000 m6561 ftor less |
| Current consumption | 100 mA or less |
| Degree of pollution | 2 |
| Insulation resistance | 20 MOhm , or more, with 250 V DC between all supply teminals connected together and enclosure |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Analog output : Current | Output range: 3.2 to 20.8 mA (normal), 21.6 mA (alarm)Load impedance: 300 Ω or less |
| Analog output : Voltage | Output range: 0 to +10.5 V (normal), 11 V (alarm)Output impedance: 100 Ohm |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Indicator : Laser emission | Green LED (lights up during laser emission) |
| Measurement center distance | 50 mm1.969 in |
| Temprerature characteristics | ± 0.08 % F.S. / ℃ |
| Indicator : Measurement range | Three yellow LED |
| Output polarity setting input | NPN open collector output operates when 0 V is connected.PNP open collector output operates when 24 V DC is connected. |
| Outputs (OUT 1, OUT 2, OUT 3) | Judgment output or alarm output (Setting can be selected.)Selectable NPN transistor open-collector or PNP transistor open-collector-Maximum sink current: 50 mA-Applied voltage: 3 to 24 V DC (between output and 0 V)-Residual voltage: 2 V or less (at 50 mA of sink current)-Maximum source current: 50 mA-Residual voltage: 2.8 V or less (at 50 mA of source current) |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Environmental resistance : Shock resistance | 500 m/s2acceleration (50 G approx.) in X,Y and Z directions three times each |
| Environmental resistance : Ambient illuminance | Incandescent light: 3,000 liter x or less at the light-receiving face(Note) The fluctuation by ambient illuminance is ± 0.1 % F.S. or less. |
| Environmental resistance : Ambient temperature | -10 to +45 ℃+14 to +113 ℉(No dew condensation allowed), Storage: -20 to +60 ℃-4 to +140 ℉ |
| Environmental resistance : Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X,Y and Z directions for two hours each |
| Output (OUT 1, OUT 2, OUT 3) : Output operation | Opened when the amount of light is insufficient. |
| Output (OUT 1, OUT 2, OUT 3) : Short circuit protection | Incorporated (automatic restoration) |
Product Description
CMOS class 2 measuring laser, IP67, Diffuse Reflection, built-in display and amplifier, 2 s. analog, 3 selectable digital outputs PNP/NPN, standard model, measurement range: 50 ± 10 mm., resolution:1.
