UHGS1032

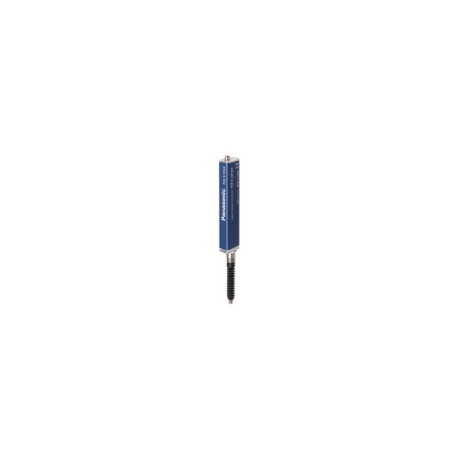

UHGS1032 HG-S1032 PANASONIC HG-S contact measurement sensor, head, standard type, resolution 0,5μm, accuracy..
$0.00USD
4360 in stock
Key Specifications
Item:Specifications
Remark:Where measurement conditions have not been specified precisely, the conditions used were as follows: standard type measurement probe (HG-SS10C), ambient temperature +20 ℃+68 ℉, and a clean atmosphere where dust and liquids such as water and oil do not come in contact with the equipment.
Stroke:32.5 mm1.280 inor more
Weight:Net weight: 150 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were as follows: standard type measurement probe (HG-SS10C), ambient temperature +20 ℃+68 ℉, and a clean atmosphere where dust and liquids such as water and oil do not come in contact with the equipment. |
| Stroke | 32.5 mm1.280 inor more |
| Weight | Net weight: 150 g approx. |
| Details | 32 mm1.260 intypeGeneral purpose Standard type |
| Product | Contact-Type Digital Displacement Sensor |
| Material | Body: Aluminum, Holder: Stainless steel, Spindle: Free-cutting steel, Probe※: Brass (body) / Ceramic (ball), Rubber bellows: NBR (black)※The probes (optional) are also available. |
| Accessory | Sensor head fastening wrench 1 pc., Mounting nut 1 pc. |
| Resolution | 0.5 μm0.020 mil |
| Part Number | HG-S1032 |
| Product name | Contact-Type Digital Displacement Sensor HG-S |
| Sampling rate | 1ms |
| Product Number | HG-S1032 |
| Measuring range | 32mm1.260 in |
| Grounding method | Capacitor grounding |
| Pollution degree | 2 |
| Hot swap function | Incorporated |
| Operating altitude | 2,000 m6561.68 ftor less(Note) : Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m. |
| Operation indicator | 2-color LED (Orange / Green) |
| Tip deviation amount | 40 μm1.575 mil(typical)(Note):Linearity F.S. = 16 mA, and is linearity with respect to digitally measured values. |
| Applicable controller | HG-SC101(-P), HG-SC111(-P), HG-SC112(-P), HG-SC113 |
| Insulation resistance | 100 MΩ or more at 250 V DC |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Indication accuracy(P-P) | Full range: 3.0 μm0.118 milor lessNarrow range: 2.0 μm0.079 milor less(any 60 μm2.362 mil) |
| Position detection method | Optical absolute linear encoder method |
| Measuring force : Side mount | 2.53 N or less1.50 N(Note 1): Typical value near center of measurement. |
| Measuring force : Upward mount | 2.09 N or less1.19 N(Note): Typical value near center of measurement. |
| Measuring force : Downward mount | 2.97 N or less1.90 N(Note): Typical value near center of measurement. |
| Environmental resistance : Protection | IP67 (IEC)(Note): Excludes damage and deterioration to rubber bellows due to external causes. |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Environmental resistance : Shock resistance | 1,960 m/s2acceleration in X, Y and Z directions three times each |
| Environmental resistance : Ambient temperature | -10 to +55 ℃+14 to +131 ℉(No condensation or icing),Storage: -20 to +60 ℃-4 to +140 ℉ |
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 3 mm0.118 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
Product Description
HG-S - Contact measurement sensor. Standard model sensor head. Resolution 0.5μm. Precision 3μm. Range 32mm
