UFX502P

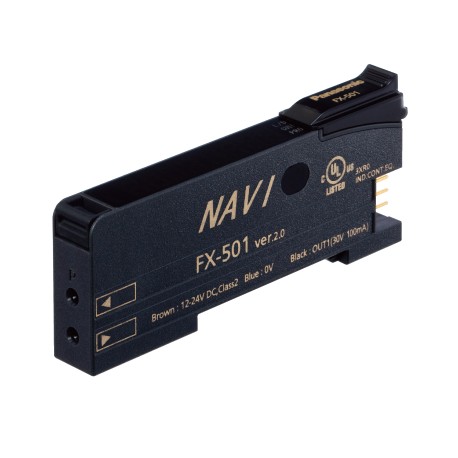

UFX502P FX-502P PANASONIC Fiber amplifier, PNP, 2 digital output, double display, connector type
$0.00USD
4145 in stock
Key Specifications
Item:Specifications
Cable:-
Weight:Net weight: 15 g approx.Gross weight: 70 g approx.
Details:2-output type
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | - |
| Weight | Net weight: 15 g approx.Gross weight: 70 g approx. |
| Details | 2-output type |
| Product | Digital Fiber Sensor |
| Material | Enclosure, Case cover: PolycarbonateSwitch: Polyacetal |
| Accessory | FX-MB1 (Amplifier protection seal): 1 set |
| Protection | IP40 (IEC) |
| Part Number | FX-502P |
| Product name | Digital Fiber Sensor FX-500 Ver.2 |
| Response time | H-SP: 25 micro s or lessFAST: 60 micro s or lessSTD: 250 micro s or lessLONG: 2 ms or lessU-LG: 4 ms or lessHYPR: 24 ms or less, selectable |
| External input | - |
| Product Number | FX-502P |
| Supply voltage | 12 to 24 V DC+10-15 % Ripple P-P 10 % or less |
| Timer function | Incorporated with variable OFF-delay / ON-delay /One-shot / ON-delay - OFF-delay / ON-delay - One-shot timer, switchable either effective or ineffectiveIncorporated with variable OFF-delay / ON-delay /One-shot timer, switchable either effective or ineffective |
| Cable extension | - |
| Various settings | Hysteresis setting / Shift amount setting / Emission power setting / Display turning setting / ECO setting / Data bank loading saving setting / Copying setting / Code setting / Reset setting / Logical calculation setting / Threshold value tracking setting, etc. |
| Power consumption | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage) |
| Output 1, Output 2 | PNP open-collector transistor- Maximum source current: 50 mA (Note 1)- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (Note 2) (at maximum source current)(Note 1) 25 mA max. if 5 or more standard types are connected together.(Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type) |
| Ambient temperature | -10 to +55 ℉+14 to +131 ℉[If 4 to 7 units are mounted in cascade: -10 to +50 ℉+14 to +122 ℉or if 8 to 16 units are mounted in cascade: -10 to +45 ℉+14 to +113 ℉] (No dew condensation or icing allowed), Storage: -20 to +70 ℉-4 to +158 ℉ |
| Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Timer function:Timer period | Timer range ''ms'': 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx.Timer range ''sec.'': 0.5 s approx., 1 to 32 s approx., 1 s approx.Timer range ''1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., 0.1 ms approx.each output is set individually |
| Emitting element (modulated) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Emission amount setting function | Incorporated, 3 levels (each level 25 to 100 %) + Auto setting [1 level (25 to 100 %) when using H-SP mode] |
| Interference prevention function | Incorporated (Note) , selectable either automatic interference prevention or different frequency(Note) Number of sensor heads which is possible to be mounted closely in auto interference prevention function depends on response time as shown in table below.Number of sensor heads which is possible to be mounted closely in different frequency Interference prevention function is up to 3 units.- Number of sensor heads mountable closely (Unit: set)Response time: IP-1H-SP: 0FAST: 2STD: 4LONG: 8U-LG: 8HYPR: 12 |
| Output 1, Output 2:Output points | 2 points |
| Possible external input function | Emission halt / Teaching (Full-auto, Limit, 2-point) / Logic operation setting / Copy lock / Display adjustment / Data bank load / Data bank save, selectable |
| Output 1, Output 2:Output operation | Switchable either Light-ON or Dark-ON by L/D mode |
| Incident light intensity display range | H-SP / FAST / STD: 0 to 4,000LONG: 0 to 8,000U-LG / HYPR: 0 to 9,999 |
| External input(switchable with Output 2) | PNP non-contact input- Signal conditionHigh: +4 V to +V DC (at 3 mA sink current)Low: 0 to +0.6 V DC or Open- Input impedance: 10 kOhm approx. |
| Output 1, Output 2:Short-circuit protection | Incorporated |
Product Description
FX-500 Optical Amplifier, 2 PNP outputs, dual display, high sensitivity and detection distance, ultra-fast.
